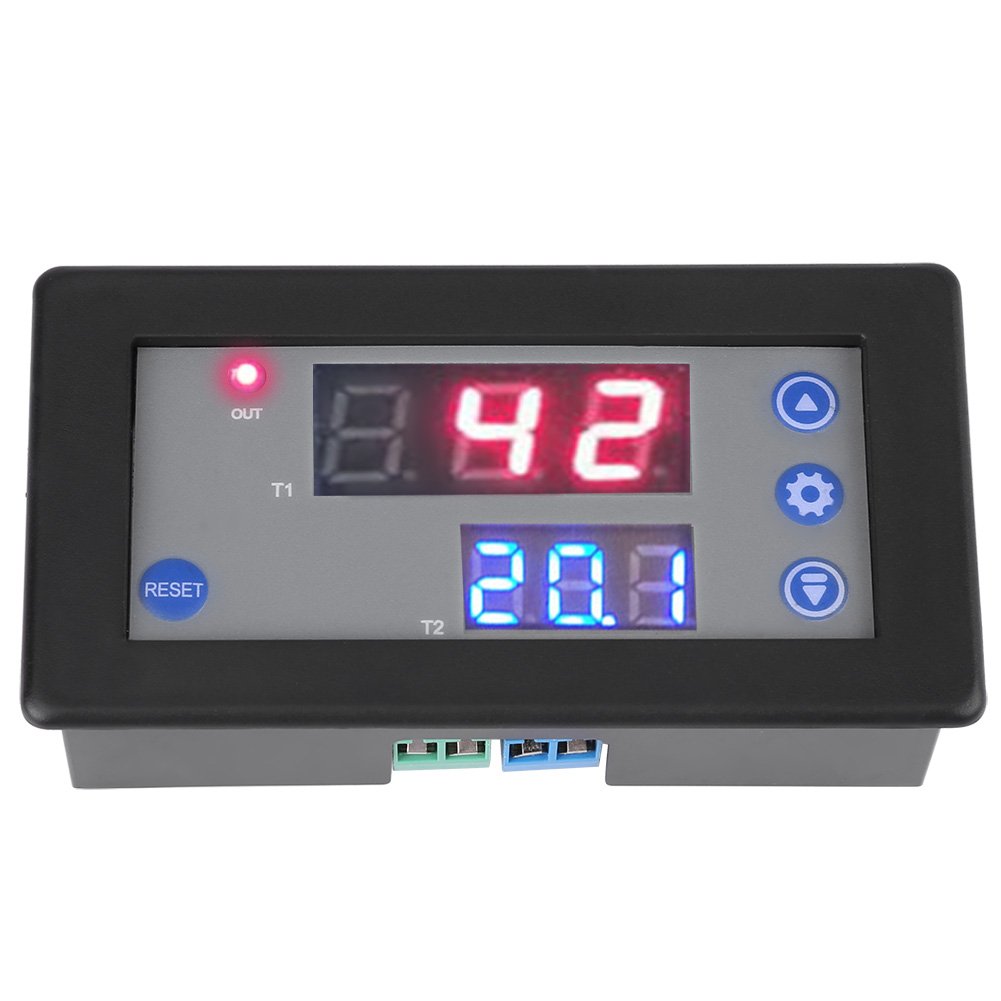

Ginorgee 12V Timing Delay Relay Module - Digital LED Dual Display Cycle Timer for Automotive, Industrial & DIY Projects | Adjustable Delay & Repeat Cycle Function

Product Description

Specifications: Product size: 3 x 9.7 x 5.2cm/1.1 x 3.8 x 2.0 inch Time range: 0-999s / 0-999m / 0-999h Maximum working current : 10A maximum power: 1500W Voltage: DC 12v Weight: 70g Instruction Manual: Before using the first prompt the user to note that a certain set of data After waiting 6s, 6s after the memory module will automatically save the data set.(1) Press SET key to enter the time setting mode, the digital tube flicker, buttons plus or minus buttons to adjust the timing T 1 and the timing T 2, after setting the time, must wait 5s, 5s after the module will automatically remember save data.(2) Press SET, the parameter setting mode. There are two sets of parameters for the user to select P0, P1. In the current mode Short press SET to switch P0, P1. In P0, P1 parameter can be set for their own timer mode through the key addition and subtraction.P0--0: timing mode is 0--999 ??secondsP0--1: timing mode is 0--999 ??minutesP0--2: timing when the pattern is 0--999 ?? hours P1--0: T1 time delay relay (T 1 timer)P1--1: T1 delay time relay releases (T 1 timer)P1--2: time delay relay after T 1 (T 1 timer), then the delay time T 2 successor electrical release (T 2 timing) ends.P1--3: T1 delay time relay releases (T 1 timer), then the delay time T 2 successor Electric energized (T 2 timing) ends.P1--4: time delay relay after T 1 (T 1 timer), then the delay time T 2 successor electrical release (T 2 timer), repeat the cycle. P1--5: T1 delay time relay releases (T 1 timer), then the delay time T 2 successor Electric energized (T 2 timer), repeat the cycle.
