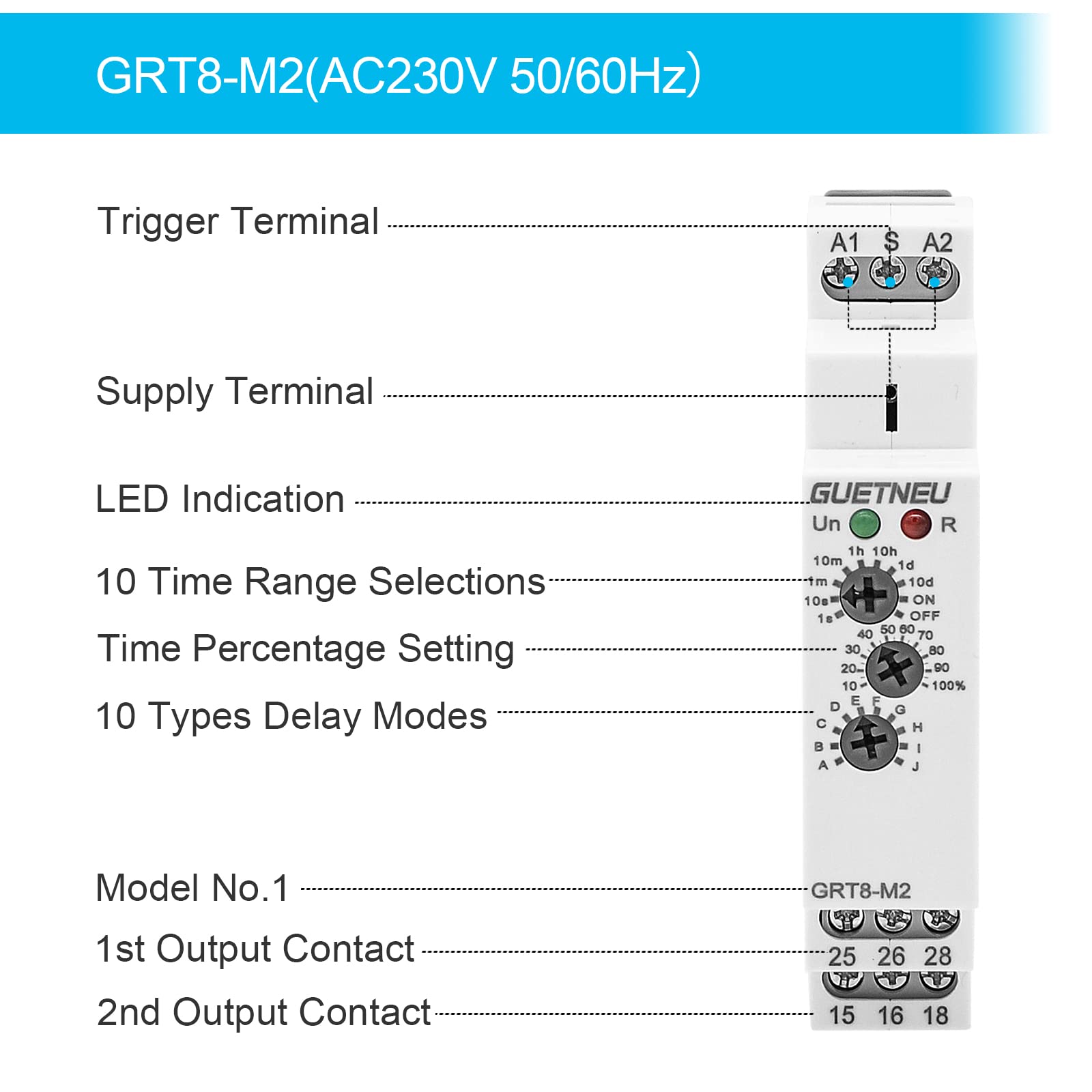

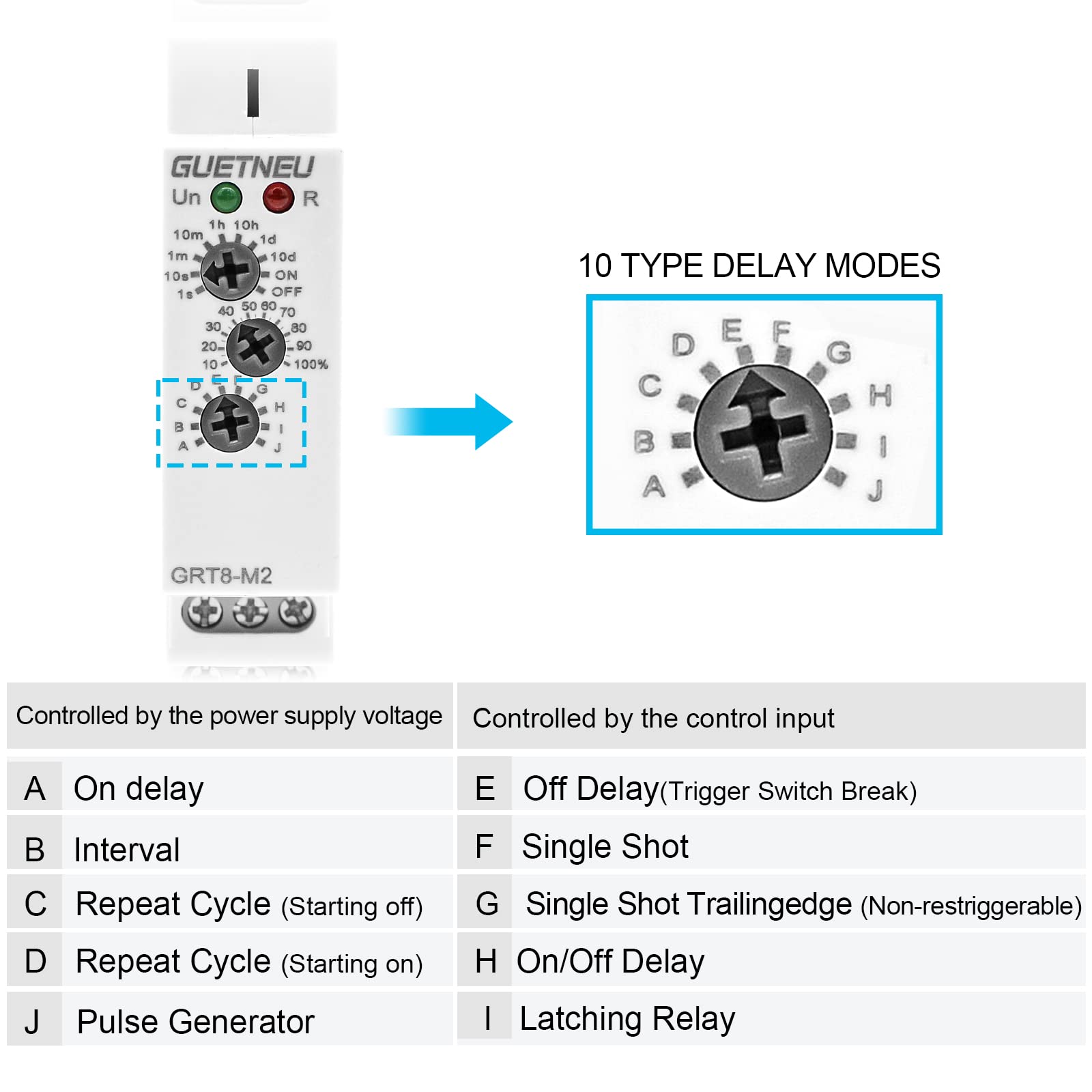

0.1 second - 10days adjustable Rotary Knobs: The first knob “S” stands for second, “M” stands for minute, “H” stands for hour, “D” stands for day. The second knob is percentage setting from 10% to 100%. 10 Type Delay modes Include: A: On delay; B: Interval; C: Repeat Cycle (Starting off); D: Repeat Cycle (Starting on); E: Off Delay(Trigger Switch Break); J: Pulse Generator; F: Single Shot; G:Single Shot Trailingedge (Non-restriggerable); H: On/Off Delay; I: Latching Relay Functional Panel Clearly show the functional parts, including Trigger Terminal; Supply Terminal; LED Indication; 10 Time Range Selections; Time Percentage Setting; 10 Types Delay Modes; Model No.1; 1st Output Contact Up to 10 function choicesFlame retardant shell and small sizeStable and convenient 35mm DIN rail mountingClear function instructions on panelA wide range of usage Specification: Contact Type: Single-Pole Double-Throw Current Rating : 16 Amps Coil Voltage: 12 Volts Contact Current Rating: 16 Amps
Extremely Multifunctional This relay features up to 10 function choices delay on, delay off, interval, cycle, single shot, latching, pulse and so on, it is useful in many applications, meets your different needs.
Well Built The timer relay is made of flame retardant shell, highly corrosion resistant and high temperature resistant, durable and works great even in outdoor harsh environment. Small in size and light in weight.
Easy to Set up and Use The relay is installed by 35mm DIN rail mounting, stable and convenient. The functions and time ranges are clear and well arranged on the panel for easy use.
Product Parameters It has a wide time delay setting range of 0.1seconds-10days, operating voltage is AC/DC 24-240V (50-60Hz), current rating is 16A, working status is indicated by the LED indicator.
Wide Application It is widely used for electric appliances, used where is necessary to change the exact timing-controlling of the illumination, heating, motors, machines etc. used in industrial equipment, lighting, manufacturing and so on.
Retrofitted my Comfort Zone garage heater to work on a 24v Wyze thermostat but needed a cool off delay for when it turns off (when heat is turned off keep the fan going for a minute to cool down the coils). People used to use an ICM251 fan blower controller but they are no longer made. Found this and put the S trigger on the other side of the contactor. Worked like a charm. Mode E, 1 minute, 100%. A1 on constant leg1, S on contactor switched side of leg1, A2 on leg2. 15 and 18 disrupting the fan wire.
