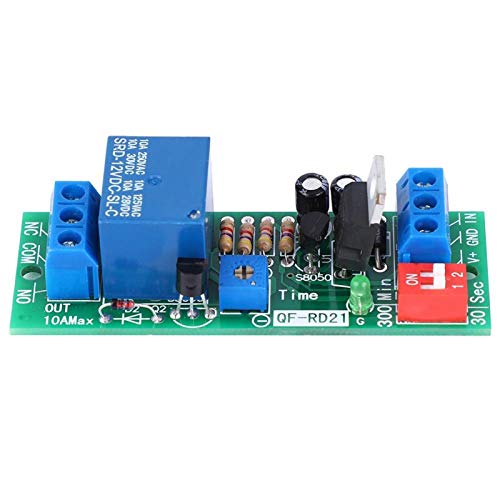

12V Timer Relay for He Induction Switch - Automatic Closing Timeout, High Reliability Electrical Equipment for Industrial Automation & HVAC Systems

Product Description

Feature:1. 4-time range is adjustable, the longest delay is 5 hours2. Turns on when there is a signal, and turns off when there is no signal3. High power load, maximum support for 10A current4. Adopted of high quality electronic components, and accuracy process, ensure for the durability5. Applicable to the combination of the stroke switch, the induction switch, the automatic closing of the timeout, the flowing monitoring of the pipeline product, etcSpecification:Item Type: Timer RelayVoltage: DC 5V/12V/24V (optional)Power Consumption: <1.0WOutput: Passive output (dry contact), relay set of normally open + normally closed output. Do not exceed 10A at most.Time Range: (4 files, selected by switch)First: Range 0.2 seconds-30 seconds, accuracy: 0.1 secondsSecond: Range 0.2 seconds - 300 seconds (5 minutes), accuracy: 0.3 secondsThird: Range 0.2 seconds-30 minutes, accuracy: 1.8 secondsFourth: Range 0.2 seconds-300 minutes (5 hours), accuracy: 18 secondsLife: More than 100,000 movementsInput: Voltage signal, valid signal above 1.5V, current requires at least 0.1mA.w-e-text table td,.w-e-text table th,;.w-e-text table,Package List:1 x Module
