SKU:41220065

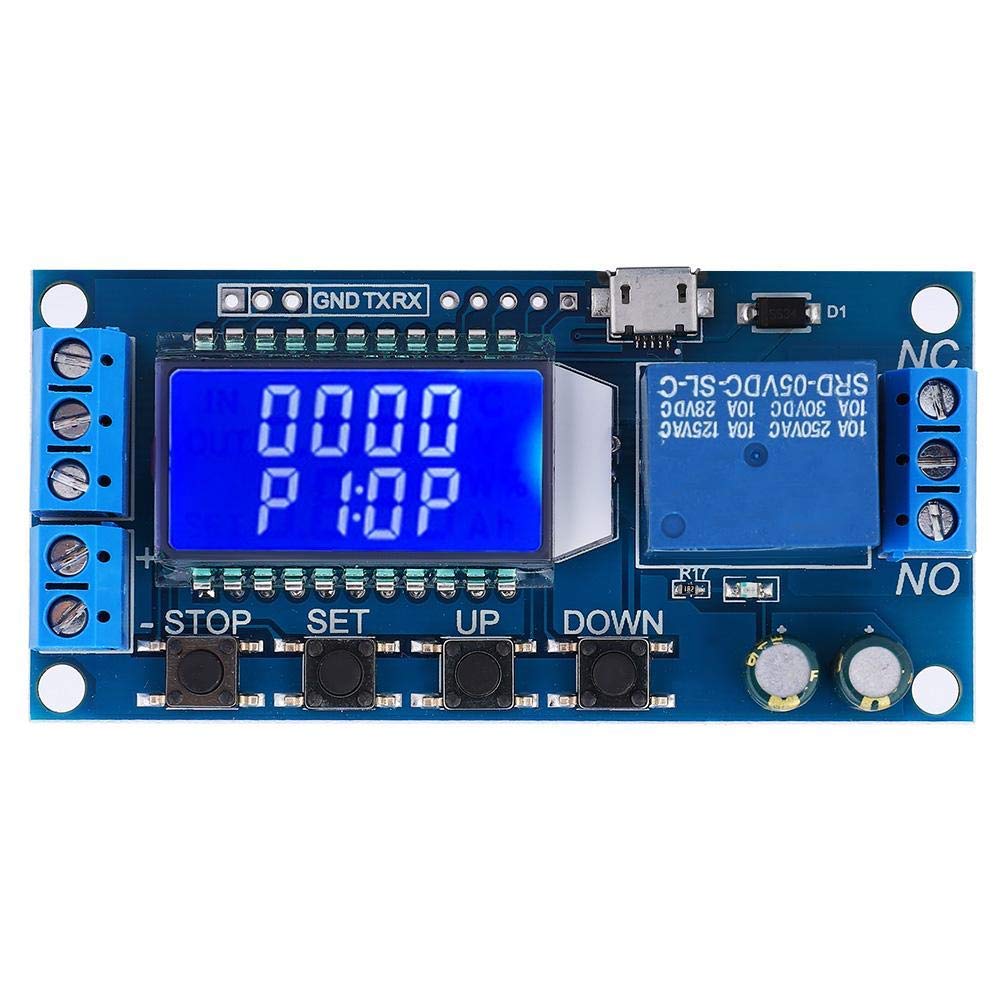

Features: 1. With LCD display screen, the current mode and parameters are clear at a glance. 2. One button emergency stop function (STOP button), with reverse connection protection. 3. Automatically save all parameter settings when power failure. 4. Industrial grade circuit board, with optocoupler isolation to enhance anti-interference ability. Specification: Item Type: Delay Relay Module Working Voltage: 6--30V Timing Range: 0.01s-9999min continuously adjustable Trigger Signal Source: High Level Trigger (3.0V~24V), Low Level Trigger (0.0V~0.2V), Switching Quantity Control (Passive Switch) Output Capability: Can control devices within 30V 5A or within 220V 5A Quiescent Current: 15mA Operating Current: 50mA Service Life: >100,000 times Working Temperature: -40~85°C Size: 88x3.8x1.9cm / 3.15x1.5x0.75in Package List: 1 x Delay Relay Module
Support high or low level trigger, switch quantity control, suitable for most applications.
Support UART data upload and parameter setting.
Different 0P, CL, LOP parameters can be set, these parameters are independent of each other and saved separately.
Add sleep mode, after enabling, no operation within 5 minutes, automatically turn off the LCD backlight, any buttons wakes up the screen.
Wide power supply voltage 6~30V, support micro USB 5.0V power supply, very convenient to use.
