5S Timer Relay Module with Trigger Time Off & Indicator Light - Industrial Automation Control for Machinery, HVAC, and Electrical Systems

Product Description

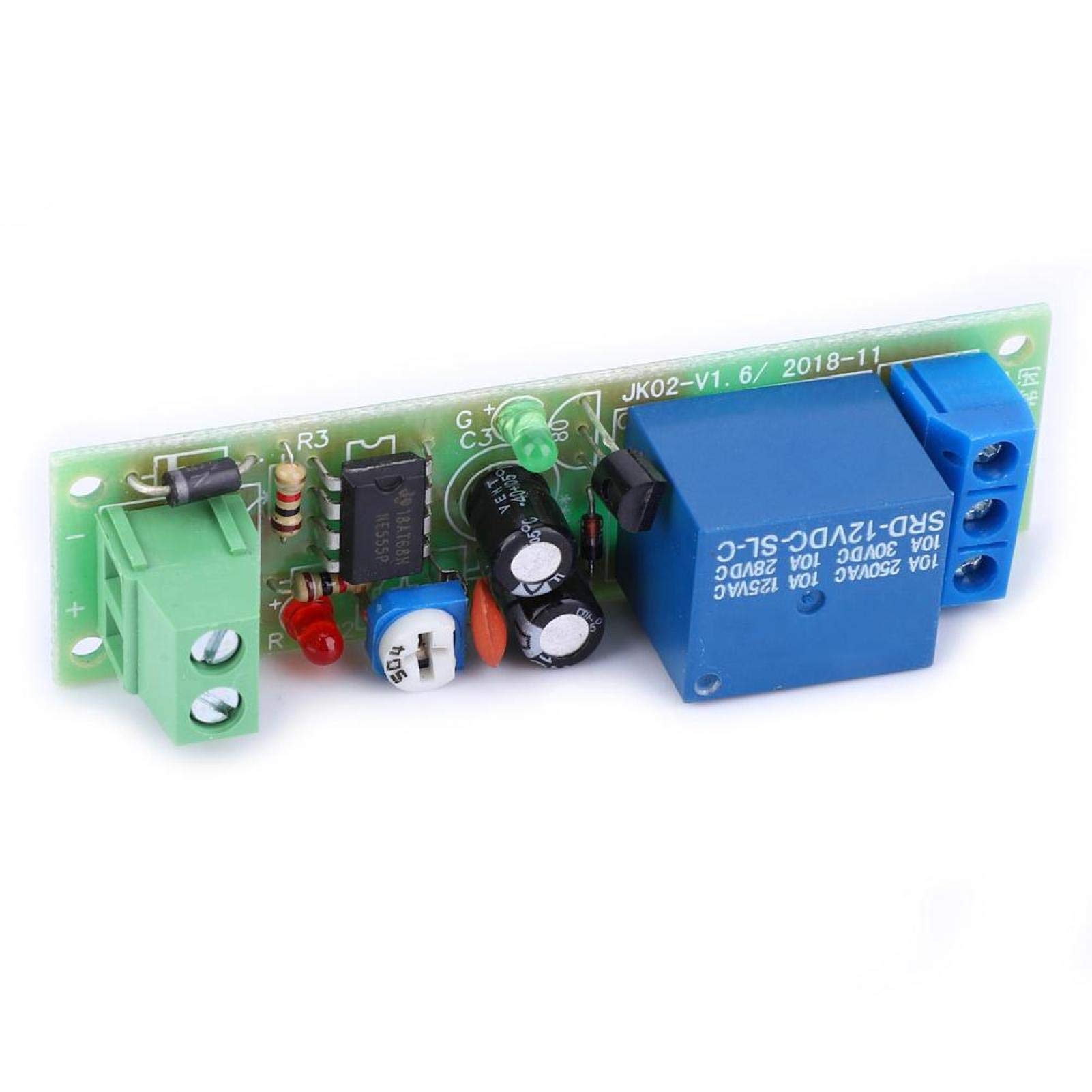

Feature:1. JK02 time delay relay module, using NE555 as the time base.2. The delay time is changed by an adjustable resistor.3. The relay is normally open and normally closed output connector, and is connected to the normally closed end (NC) for delay switching, and connected to the normally open end (NO) for delay opening.4. The circuit wiring is safe and reliable, and the load capacity is 10A 250V AC or 10A 30V DC.5. With condition indication, the red LED lights up to indicate that the module is connected to the power supply, and the green LED is lit to indicate that the relay is in the pull-in state.Spec:Item Type:Time Relay ModuleVoltage:DC5VLoad Capacity:10A 250VAC or 10A 30VDCFunction:Turn on the control board immediately after it is connected to the power supply. After the set time is reached, disconnect the load.Current:Quiescent current below 5mA, maximum current after sinking 80mA.w-e-text table td,.w-e-text table th,;.w-e-text table,Package List:1 x Module
