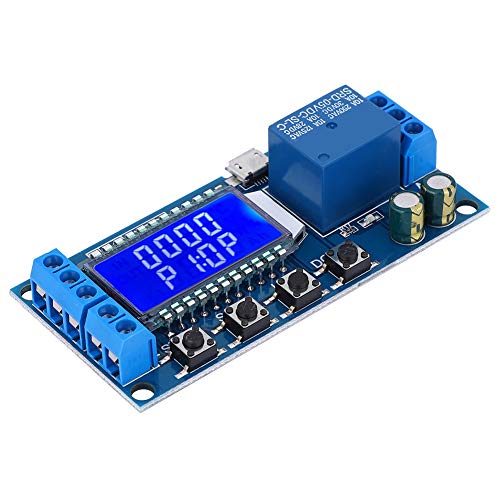

Automatic Delay Off Relay Timer - Multifunction Time Switch with UART Data Upload for Smart Quantity Control | Perfect for Industrial Automation, Home Appliances & IoT Devices

Product Description

Feature: 1. With Lcd Display Screen, The Current Mode And Parameters Are Clear At A Glance. 2. Support High Or Low Level Trigger, Switch Quantity Control, Suitable For Most Applications. 3. Wide Power Supply Voltage 6~30V, Support Micro Usb 5.0V Power Supply, Very Convenient To Use. 4. Support Uart Data Upload And Parameter Setting. 5. One Button Emergency Stop Function (Stop Button), With Reverse Connection Protection. 6. Add Sleep Mode, After Enabling, No Operation Within 5 Minutes, Automatically Turn Off The Lcd Backlight, Any Buttons Wakes Up The Screen. 7. Different 0P, Cl, Lop Parameters Can Be Set, These Parameters Are Independent Of Each Other And Saved Separately. 8. Automatically Save All Parameter Settings When Power Failure. 9. Industrial Grade Circuit Board, With Optocoupler Isolation To Enhance AntiInterference Ability. &Nbsp; Specification: Item Type: Delay Relay Module Working Voltage: 6-30V Timing Range: 0.01S9999Min &Nbsp;Continuously Adjustable Trigger Signal Source: High Level Trigger (3.0V~24V), Low Level Trigger (0.0V~0.2V), Switching Quantity Control (Passive Switch) Output Capability: Can Control Devices Within 30V 5A Or Within 220V 5A Quiescent Current: 15Ma Operating Current: 50Ma Service Life: ≫100,000 Times Working Temperature: 40~85°C Size: 88X3.8X1.9Cm / 3.15X1.5X0.75In &Nbsp; How To Choose Timing Range: In The Op/Cl Parameter Modification Interface, Short Press The Stop Button To Select The Timing Range: Xxxx: Timing Range Is 1S~9999S Xxx.X: Timing Range Is 0.1S 999.9S Xx.Xx: Timing Range Is 0.01S To 99.99S X.X.X.X: Timing
