ASCR54 Vending Machine Timer - 120VAC Adjustable 1-1023 Seconds with 1HP Relay for Coin Operated Machines & Commercial Appliances | Perfect for Laundromats, Car Washes & Vending Businesses

Product Description

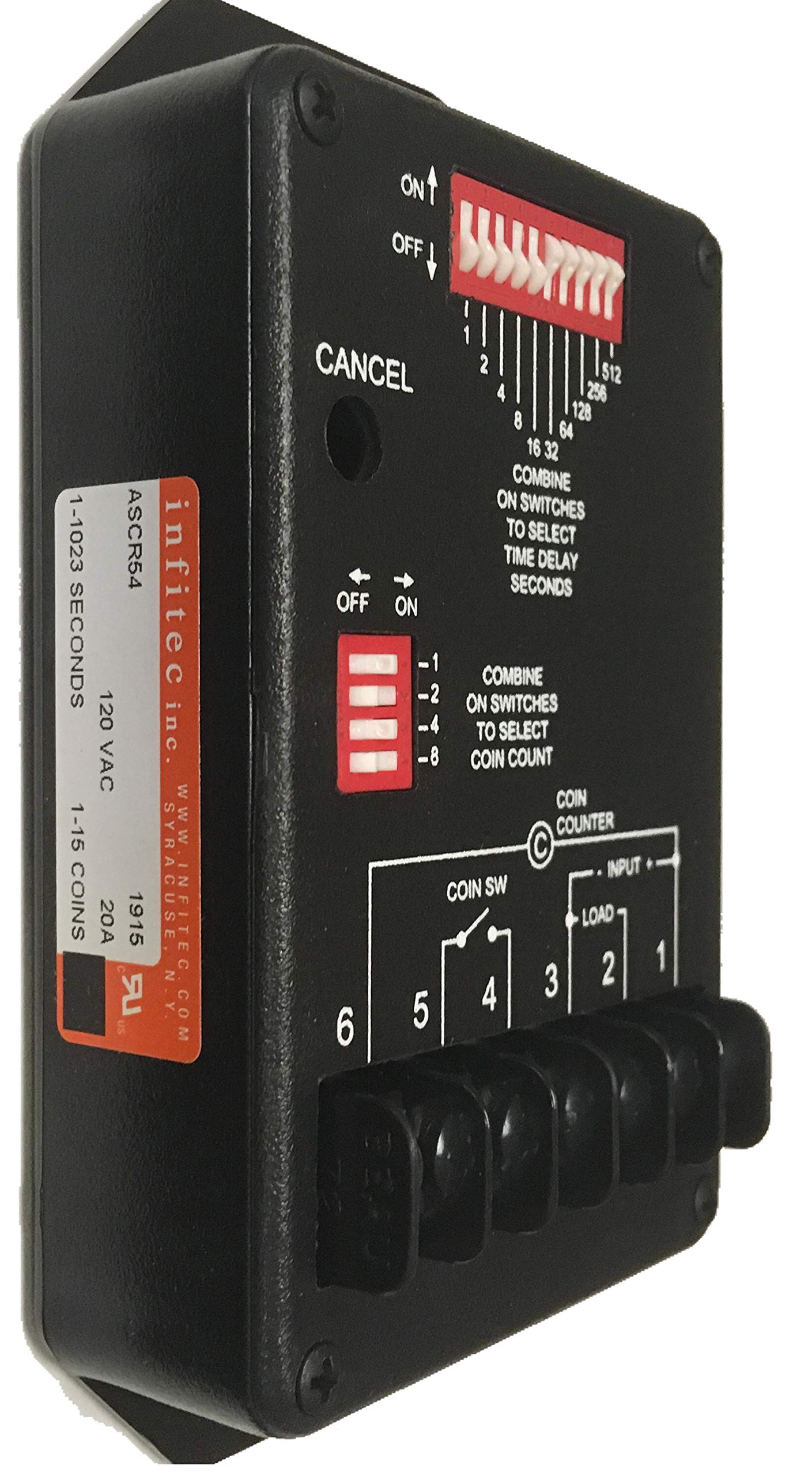

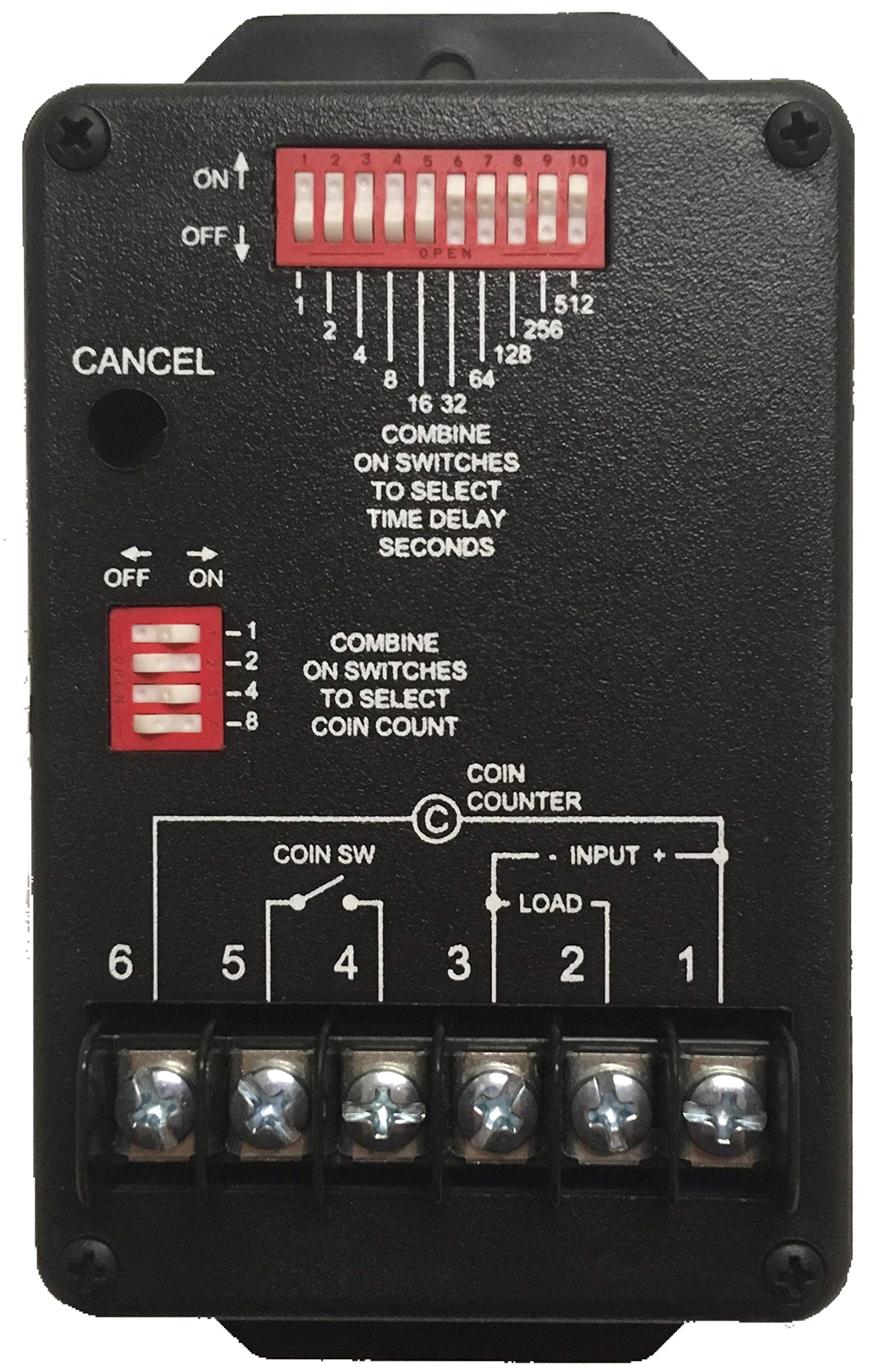

ASCR54, Infitec Vending timer, 120vac, 1-1023sec, 1HP Relay. Encapsulated Combination Accumulator/Timer, 120VAC, Binary Dip Switch (1 to 1023 Seconds). This unit counts coin switch inputs (1-15) and simultaneously outputs a pulse to an external counter, when the switch closures equals the dip switch setting the output turns on for an adjustable time 1-1023 seconds. This control has been used in machines to vend air and/or water at gas stations. See the ASCR series datasheet for a complete specification and other configurations.
