SKU:87338525

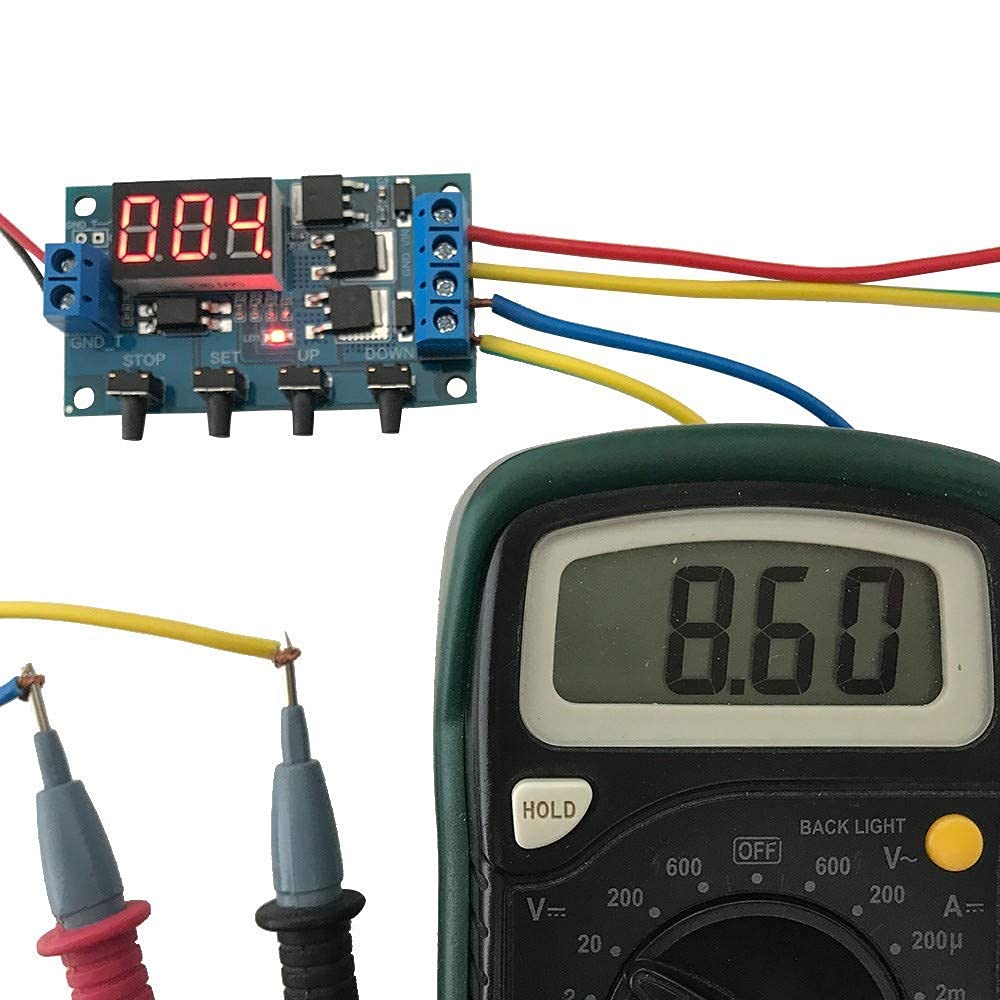

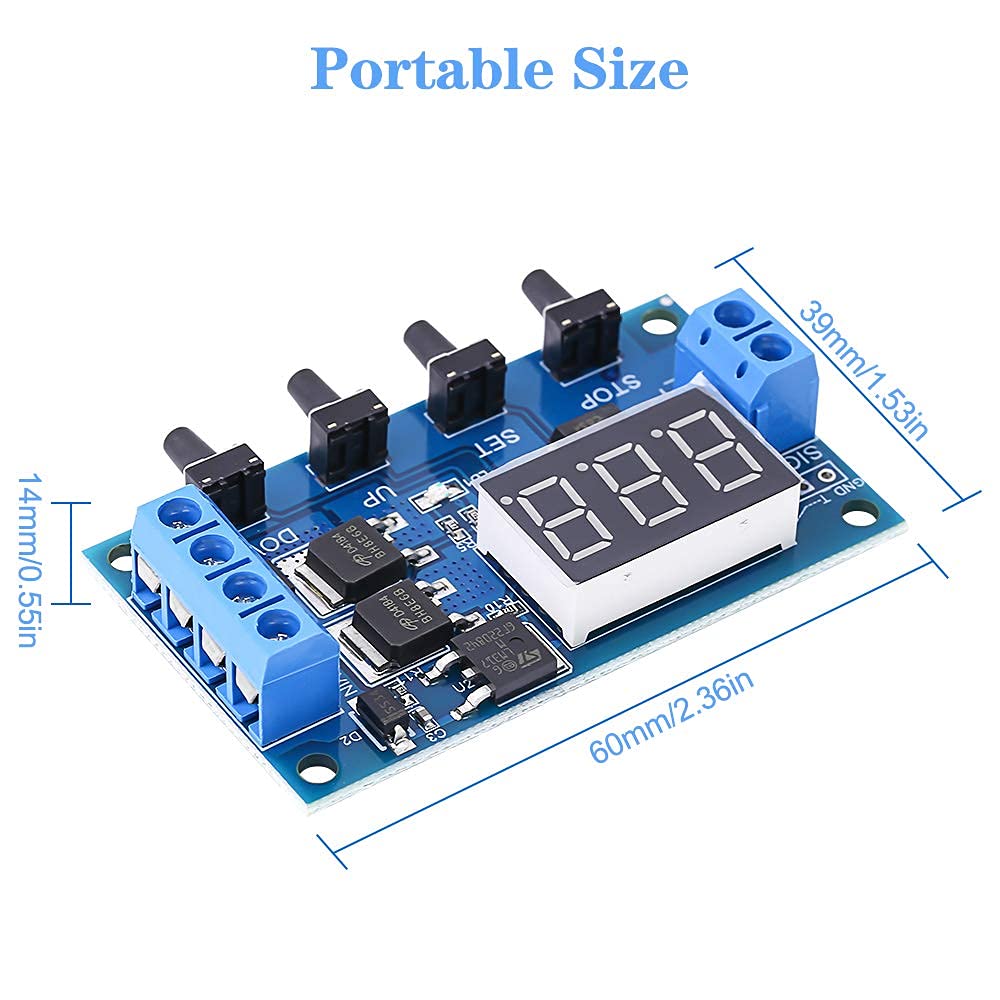

Trigger Cycle Timer Delay Controller Trigger cycle timing Delay switch circuit Pulse generator Dual MOS control Trigger Cycle Timing Delay Switch Circuit MOS Pulse Generator DC 5V-36V Digital Tube Display Work Mode: P1.1:Trigger Delay Mode. Input trigger signal and then output turn ON and keep time OP. Then turn OFF after delay time OP.Keep OFF at last; The input signal is invalid if get trigger signal again during delay time OP.(Time OP can not be set 0) P1.2:Trigger Delay Mode. Input trigger signal and then output turn ON and keep time OP. Then turn OFF after delay time OP.Keep OFF at last; Output will restart delay if get trigger signal again during delay time OP.(Time OP can not be set 0) P1.3:Trigger Delay Mode. Input trigger signal and then output turn ON and keep time OP. Then turn OFF after delay time OP.Keep OFF at last; Output will reset and stop timing if get trigger signal again during delay time OP.(Time OP can not be set 0) P2:Trigger Delay Mode. Input trigger signal and then output keep OFF for time OL. Then turn ON after delay time OL and then keep ON for time OP. Then turn OFF after delay time OP.Keep OFF at last.(Time OP and OL both can not be set 0) P3.1:Trigger Delay Mode. Input trigger signal and then output turn ON and keep time OP. Then turn OFF after delay time OP and then keep OFF for time OL. Cycle the above two actions in turn.The number of cycles (LOP) can be set.Output will reset and stop timing and output OFF if get trigger signal again during loops.(Time OP and OL both can not be set 0) P3.2:Power-ON Delay Mode. Input work power supply and then output turn ON and keep time OP. Then turn OFF after delay time OP and then keep OFF for time OL. Cycle the above two actions in turn.The number of cycles (LOP) can be set.(Time OP and OL both can not be set 0) Note:this mode no need input signal. P4:Signal Keep Mode. Keep input signal and then output keep ON.Output turn OFF after delay time OP when the signal disappears.Reset delay time when get trigger signal again during timing.(Time OP can not be set 0) Parameter Description: OP: Delay time for turn On CL: Delay time Turn OFF LOP: Number of cycles.Range is 1-999tims.’----’ means unlimited loop Set Parameter: Long press:keep press button for more than 3second 1>.Enter set parameter menu by long press button 'SET' 2>.Work mode will flash at first when set the working mode.Short press the UP/DOWN button to select working mode P1~P4. 3>.Short press SET button to enter the system parameter settings interface. 4>.In the system parameter setting interface, short press the ‘SET’ button to switch the system parameters to be modified, short/long press the UP/DOWN button to modify value. 5>.Short press button ‘STOP’ to select timing range. 6>.Short press button SET to set next parameter. 7>.Save the parameter settings and exit the settings interface when long press ‘SET’ button after all the parameters are set. 8>.Main interface:Display 000 if no output. 9>.Set interface:Long press SET button enter into set interface.Long press SET button again into main interface after set parameter. Buyer's Diagram show See the diagram attached for how to wire the high-level trigger. You can connect the ground wire and positive wire from the trigger to the input power connection on the PEMENOL unit but that is not suggested in the documentation. IMPORTANT NOTE - For the unit to work with the trigger used to activate and deactivate the units cycle you must select the P3.1 setting. Package Listing 1pcs ZK-J06 Delay Controller Module 6pcs Acrylic shell 4pcs M3*12mm Copper column 4pcs M3*5+6mm Copper column 8pcs M3*6 screw Parameters Working Voltage:DC 5V-36V Control Current:30A(Max and need heat sink!Normal temperature 15A 400W) Quiescent Current:15mA Working Current:50mA Trigger signal source: High level trigger (3.0V~24V) Note Module can output voltage same to input voltage GND and GND- can not connect together otherwise module can not work normally Please read use manual and description before use Buyer's Diagram Package Included Size Installation Complete Features: 1>.Digital tube display 2>.Support high level trigger 3>.Emergency stop function 4>.Sleep mode,Wake up with any button 5>.Automatically save parameters 6>.Dual MOS control support more than 15A 400W 7>.Support reverse connection protection 8>.Continuously adjustable from 0.1 seconds to 999 minutes 9>.Optocoupler isolation to enhance anti-interference ability Additional Features: 1>.Auto sleep function: Long press button 'STOP' in the normal running interface to turn on or off auto sleep function. 1.1>C-P:Turn ON auto sleep function.Screen will automatically turns off if there is no operation within five minutes.It can be wake up by any buttons. 1.2>.O-d:Turn OFF auto sleep function. 2>.Enabled/Disabled output by short press button STOP: 2.1>.ON:Enabled output during delay time OP. 2.2>.OFF:Disabled output during delay time OP.Module can not output any signal at this mode. 3>.Common ground:User can connect GND of trigger signal to GND of module by short pads GND-T and GND.But it is not recommended, which will reduce the anti-interference ability of the module. Note: 1>.Module can output voltage same to input voltage. 2>.GND and GND- can not connect together otherwise module can not work normally. 3>.Please read use manual and description before use. Application For automatic watering system DIY Used to control curtains For pet automatic feeding equipment For controlling lighting Automatic water change control for aquarium For car headlights For automatic curtain switch For motor automatic control operation PEMENOL Timer Delay Relay PEMENOL Timer Delay Cycle Module PEMENOL Time Delay Relay Controller Board Cycle Delay Drive Module PWM Signal Generator Driver Module Add to Cart Buying Options Buying Options Buying Options Add to Cart Customer Reviews 4.2 out of 5 stars 266 4.2 out of 5 stars 60 4.1 out of 5 stars 168 4.2 out of 5 stars 110 4.1 out of 5 stars 489 Price $15.99$15.99 — no data — no data — no data $12.99$12.99 Work Voltage DC 5-36V AC 85V-265V DC 6V-30V DC 3.3V-30V DC 5V-30V Timing Range 0.1s-999mins 0s-999h 0.01s-9999mins 0.000s~9999s no data Display Mode Dual Mos Output Dual Timing Time Auto Sleep Function PWM mode and PULSE mode Speed Regulator Driver Module

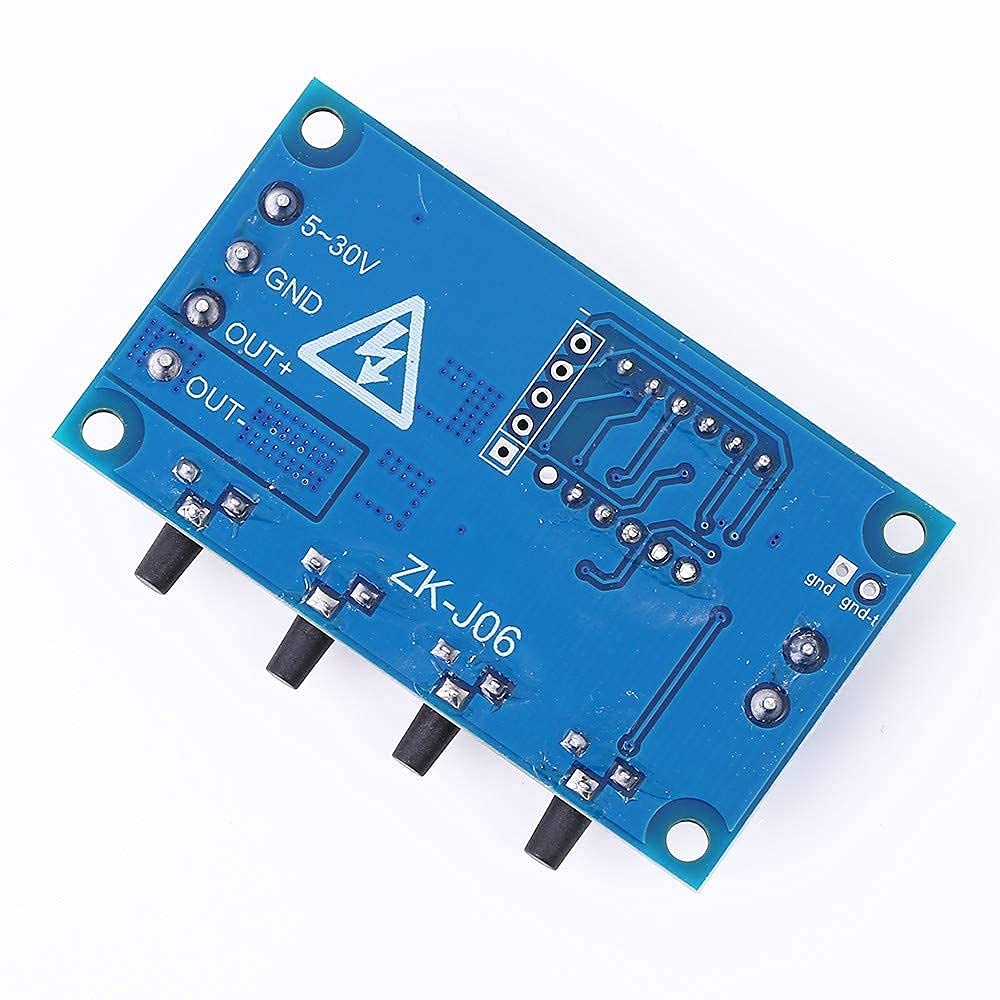

★Wide working voltage：The trigger cycle timer delay controller module work voltage is DC 5V-36V. Meet the use of most equipment. Control Current is 30A(Max and need a heat sink! Normal temperature 15A 400W). Trigger signal source High-level trigger (3.0V~24V)

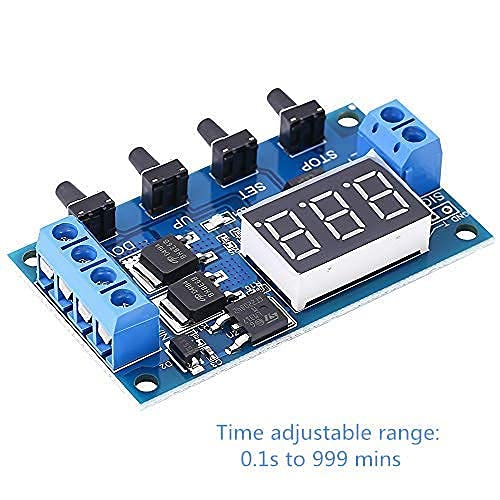

Different parameters can be set OP、CL、LOP these parameters can be set. OP-on time, CL-off time, LOP-number of cycles (1—999 times, "---" means infinite cycles). These parameters are independent of each other and saved separately. All set parameters are automatically saved after power-off
★One key emergency stop function：The module with One key emergency stop function (STOP key), with reverse connection protection, reverse connection will not burn. And it supports sleep mode. After enabling, the display will automatically turn off if without any operation within 5 minutes. Press any button to wake up
★Unlimited switching times：This time delay switch circuit can realize the circuit high frequency fast and frequent on and off, unlimited switching times. No noise will be generated during the on-off process, no electric sparks, and no electromagnetic interference. The service life is longer than that of common electromagnetic relays

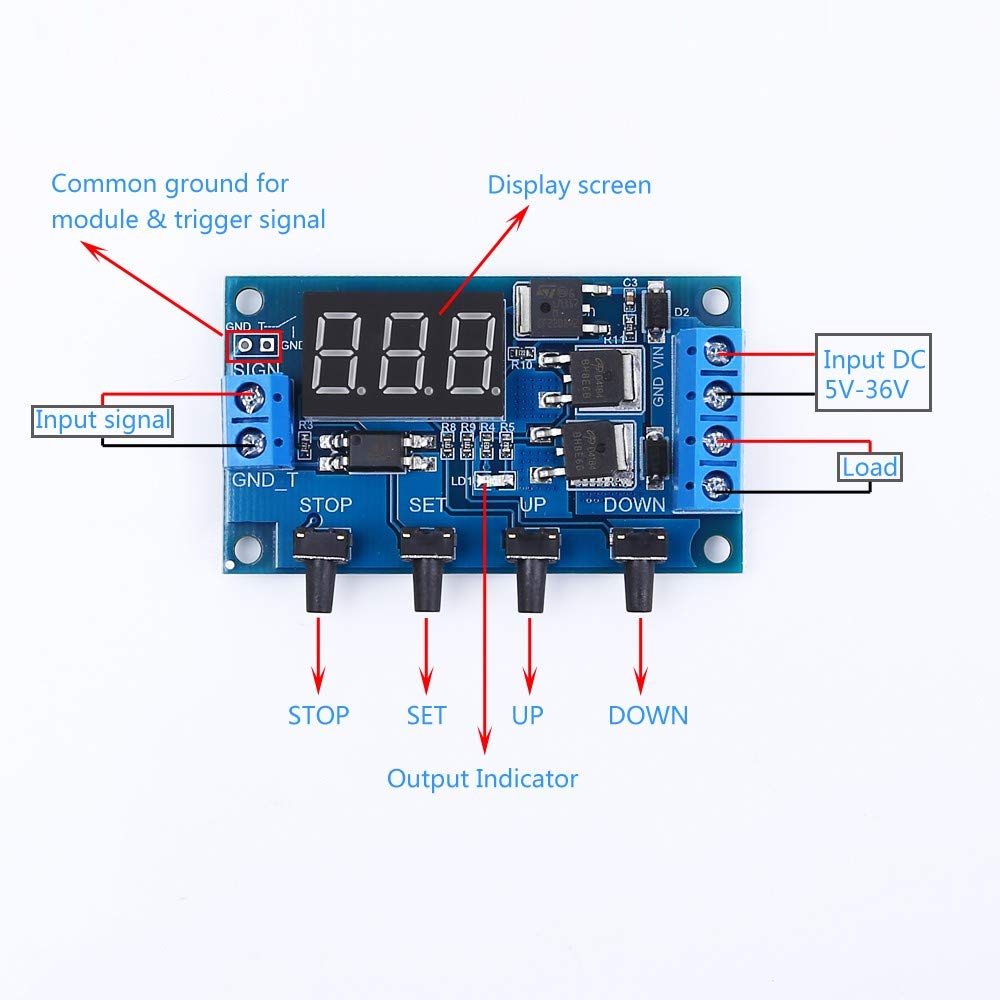

★Dual MOS output This MOS tube pulse generator uses dual MOS parallel active output, lower internal resistance, higher current, and strong power. 15A, 400W at normal temperature. For more details, please read the user manual

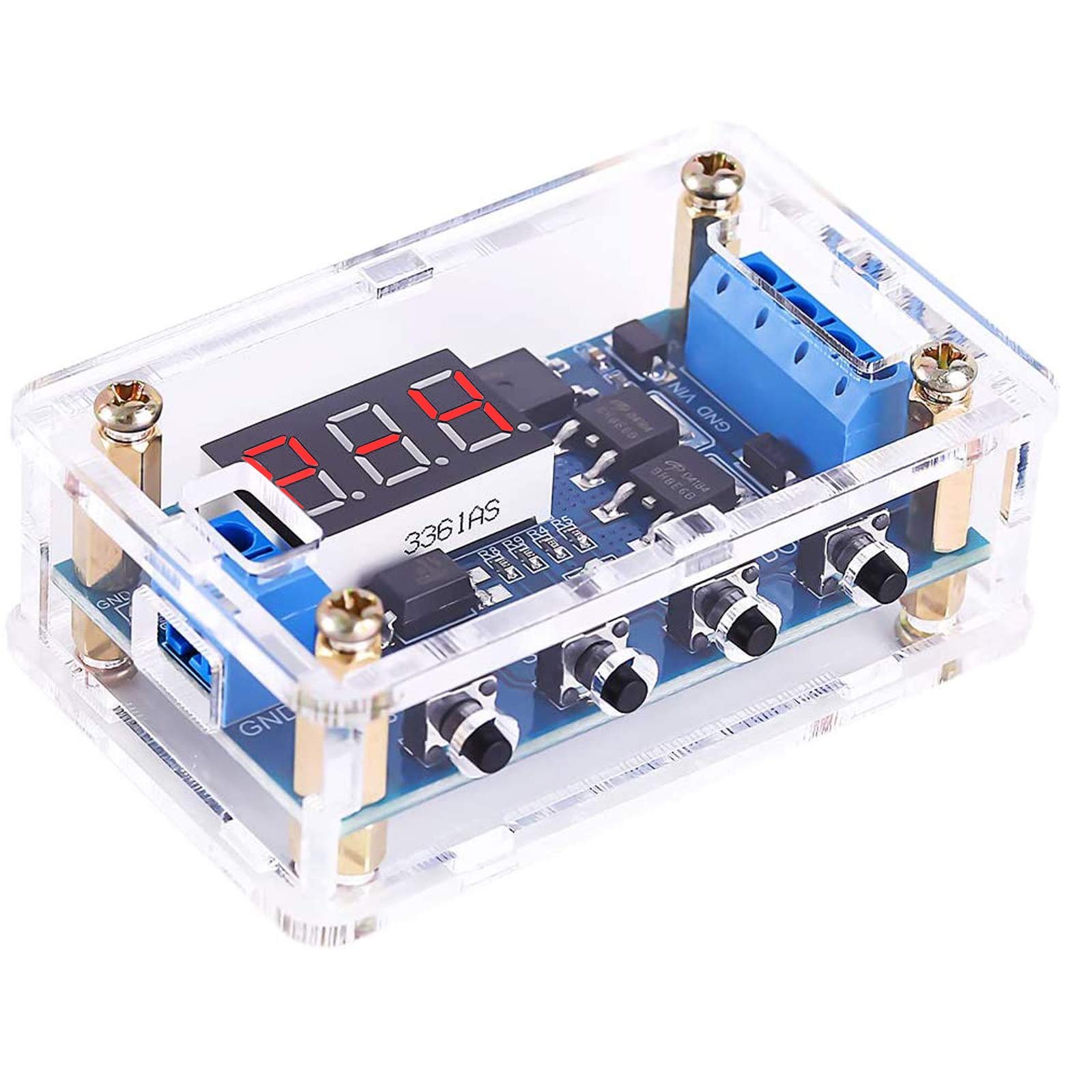

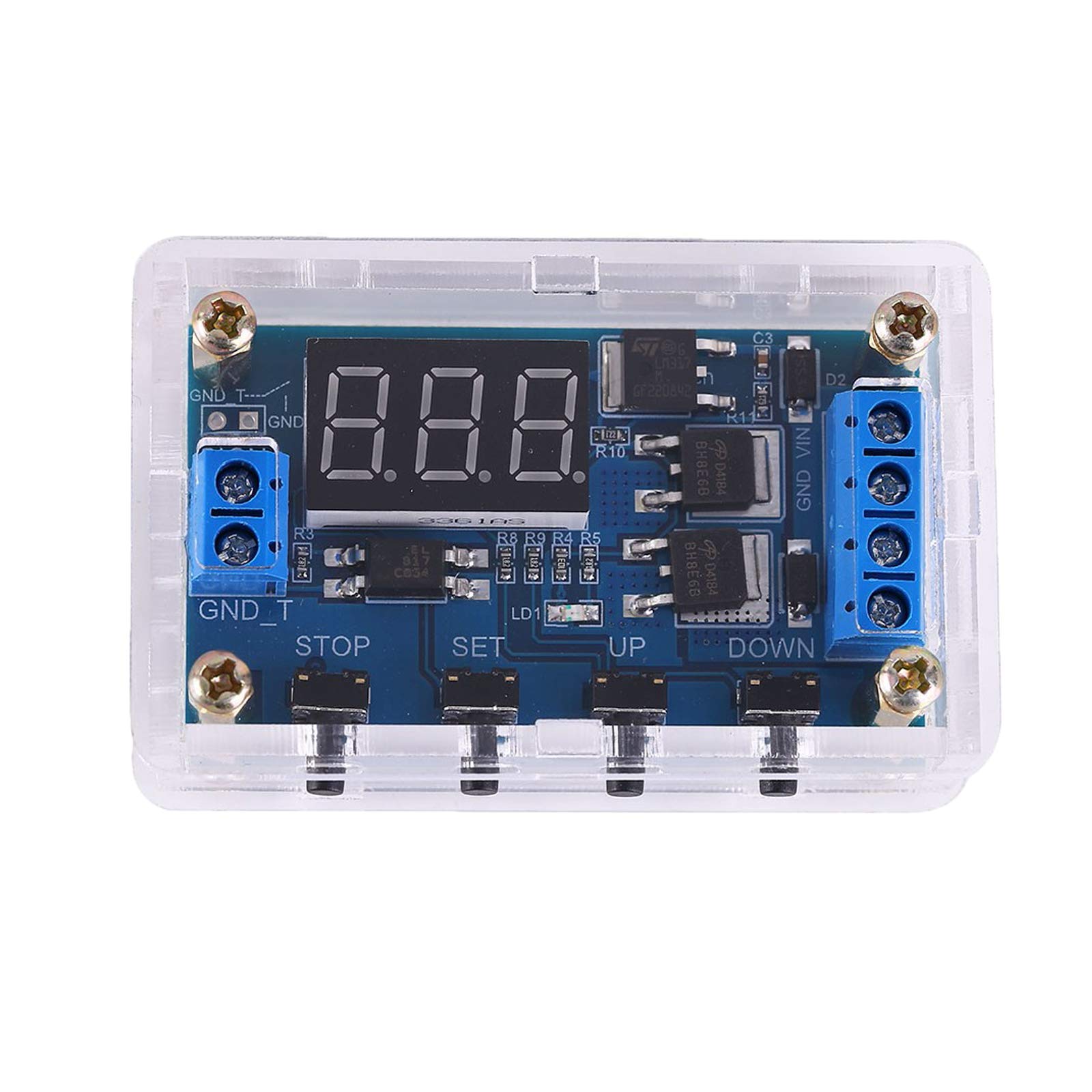

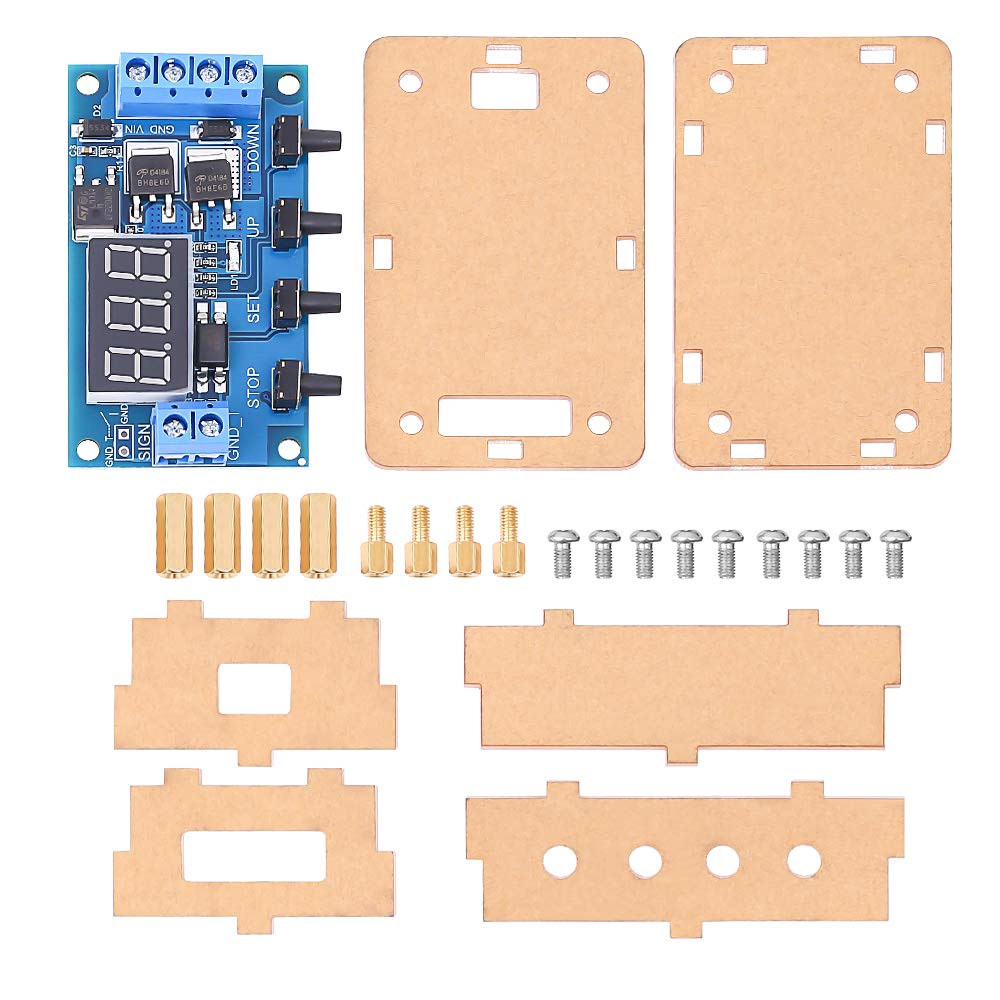

I got this timer as a test for some of my electronic projects. The reviews stated it is versatile, so I got one to see, and it is. You can set the timer to count down in several different modes. The modes vary according to how you want the output to turn on/off, reset, and loop. I must admit the timer seemed complicated at first until I got the hang of it. Once I figured out the modes and how to set them, it was pretty easy. One thing to mention is that the two pins on the left side (labeled Sign and GND_T are the trigger pins. They require voltage to be applied to start the timer. The case is also nice. I show the pictures with paper still stuck and paper removed. Removing the paper requires a little bit of work, but it looks so shiny once it's all cleaned up. All the pieces fit as they should. Once completed it looks like it belongs in front of your project for all to see. Overall, it's a nice timer with lots of options. I see working for many applications, maybe even science projects because it also looks nice.
