SKU:86072264

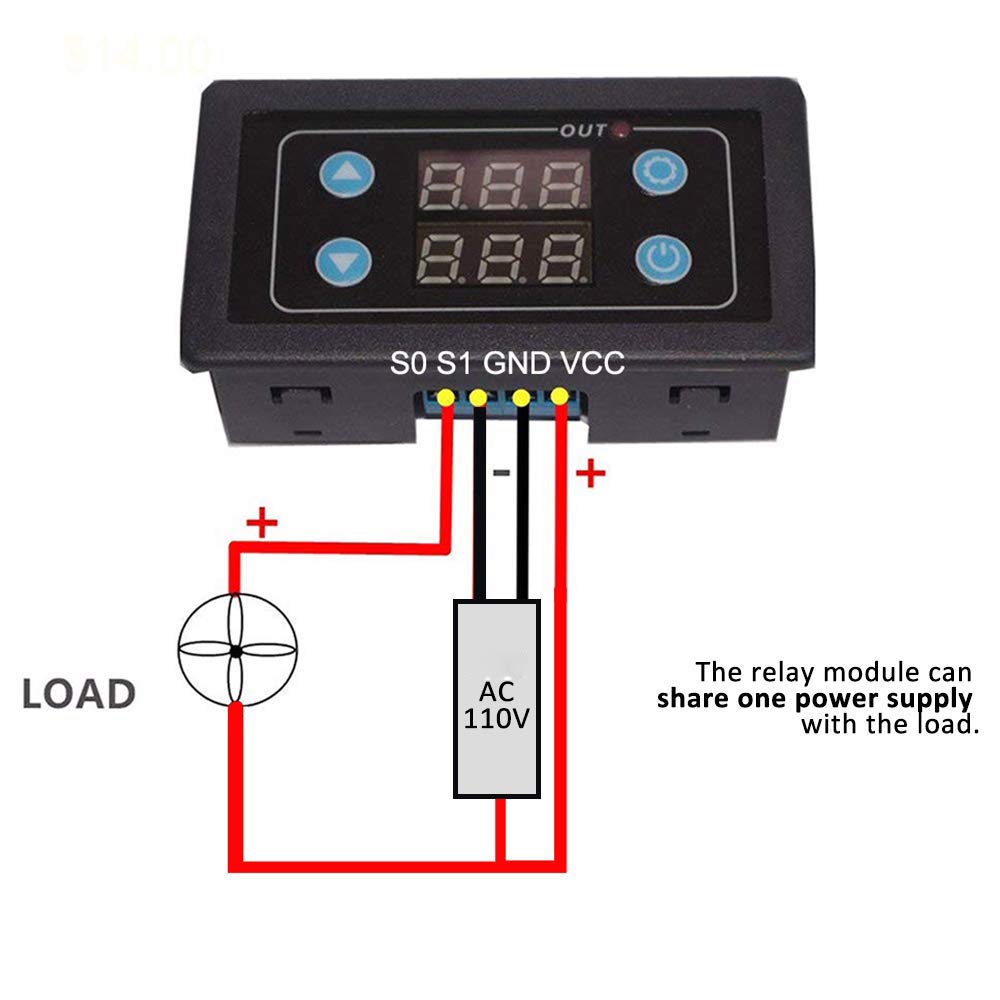

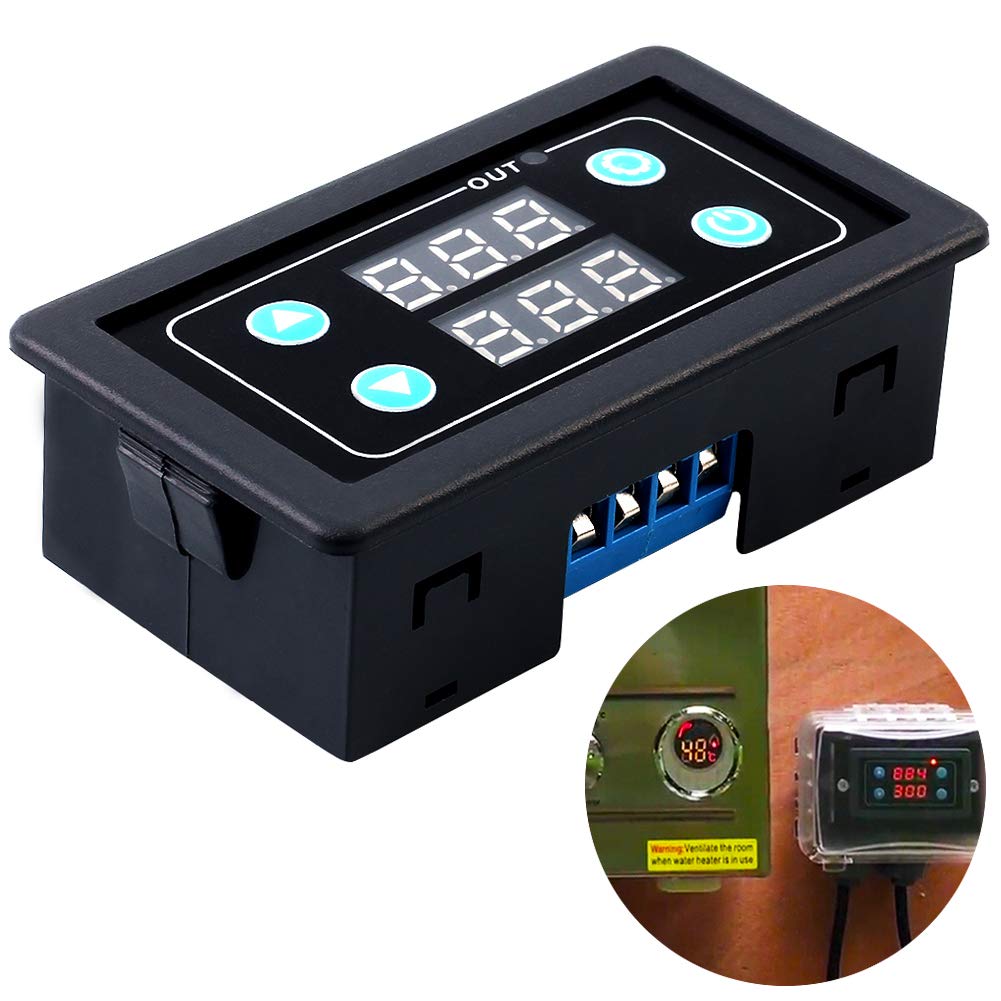

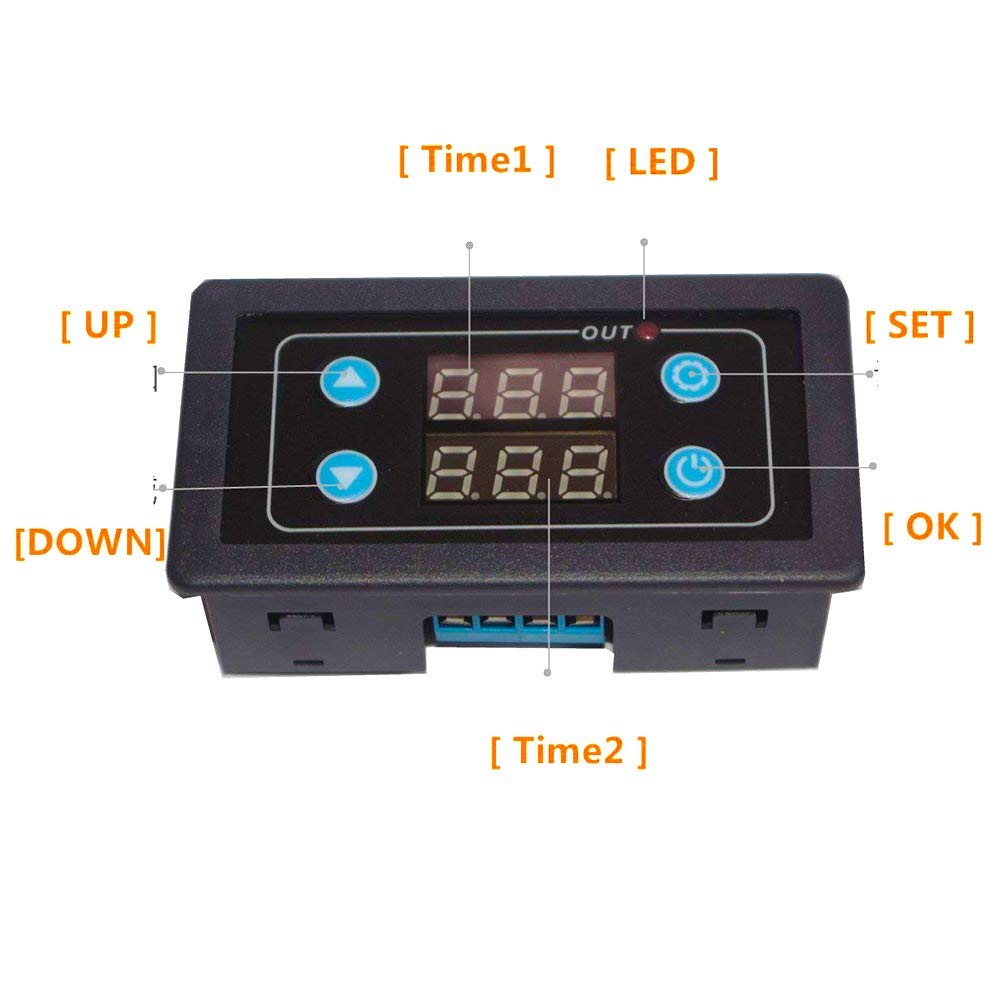

ICStation Digital Timer Relay AC 85-265V 110V 220V 2000W 10A HD LED Dual Time Display Relay Switch Panel MULTIFUNCTION: support 18 working modes including time delay relay open, time delay relay close, time delay relay open and then relay close, cycle time delay relay open and close working meeting your most demands.WIDE WORKING VOLTAGE: built-in AC-DC voltage converter module support AC85-265V wide voltage input can be connected to your home appliances directly easy to use.DUAL LED DISPLAY and SLEEP MODE: dual LED display the timing parameter T1 and T2 with sleep mode will automatically turn it off after 10s (need to set), 4 momentary keys to set the parameter, easy to operation. Working mode Time set mode:Short Press the SET button and use the up and down buttons to set the time in the Top display(T1) short press the set button to set the time displayed in the bottom display (T2) short press the set button again to save and run. Timer delay, load use different power supply Time unit setting Mode.You can set the timer to work in seconds, minutes or hours:Long press the SET button for 6 seconds or until P0 is displayed in the top display.Press the up down buttons to set the time unit mode in bottom display (T2)Top display=P0 bottom display=0 - secondsTop display=P0 bottom display=1 - minutesTop display=P0 bottom display=2 - hours Timer delay, load use the same power supply P1-0 Load is off until (T1) time counts down to 0 then the load will come on and stay on.P1-1 The load comes on as the power button is pressed. After T1 Time the load will go off.P1-2 The load is off for (T1)(delay time) then the load switches on and runs for the time set in (T2) then switches off until power switch is pressed to cycle again.P1-3 Load is on until T1 Time runs out Then after T2 time runs out the load will come on and stay on.P1-4 Load is off until (T1)(Delay) time counts down to 0, then load comes on until T2 time counts down to 0 then the load is off then it cycles again and again-auto cycle.P1-5 The load is on until (T1) time counts down to 0 then powers down and after (T2)Time counts down to 0 the load will start working and cycle again and again-auto cycle.Done How can i set the timer delay？ For example, someone wants that the timer turns on for 10 seconds, then turn off for 20 seconds, and cycle. The setting method is as follows: 1. You can long-press the SET Button enter the parameter setting menu. Choose P0-1 Set T1 10S, then short press the SET button save data. The next step set T2 time 20S. 2. P1-4. After T1 time, the load starts working (T1 timing), and after T2 time, the load stop working (T2 timing), and the above working mode cycle and repeat. DC 12V Time Delay DC 12V-36V 20A Low Voltage Cutoff DC 6V-60V 30A Low Voltage Protector Low Voltage Disconnect 2 PCS DC 5V-130V IPX8 Waterproof Battery Monitor Digital LED Tachometer Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.1 out of 5 stars 600 4.2 out of 5 stars 934 4.1 out of 5 stars 84 3.9 out of 5 stars 99 4.0 out of 5 stars 27 4.2 out of 5 stars 132 Price $15.99$15.99 $15.99$15.99 $16.99$16.99 $18.99$18.99 $11.99$11.99 $19.99$19.99 Working Voltage DC 12V DC 12V-36V DC 6V-60V DC 6V-60V DC 5V-130V AC 110V-230V Load Current 10A 20A 30A no data no data no data Function Time Delay Over Discharge Protection Over Charge and Discharge Protection Over Charge and Discharge Protection Measuring Voltage RPM Speed Meter
Wide timing range ICStation time relay delay is able to tolerate the widest timing adjusting range 0-999S/ 0-999M/ 0-999H,it is available for various application.(Please Note If the T1 time is second,the T2 time must be second. They can not achive T1 time is second and T2 time is minute/hour.)
Wide supply voltage range Icstation timer relay supports AC85-265V. This device can support different work mode, If you are not clear the operation, please download the PDF user manual or Email us.
Cycle Timer relay supports sleep working mode, which will turn off automatically after 10s(need to set ). It is also very easy to set parameter via 4 momentary keys.

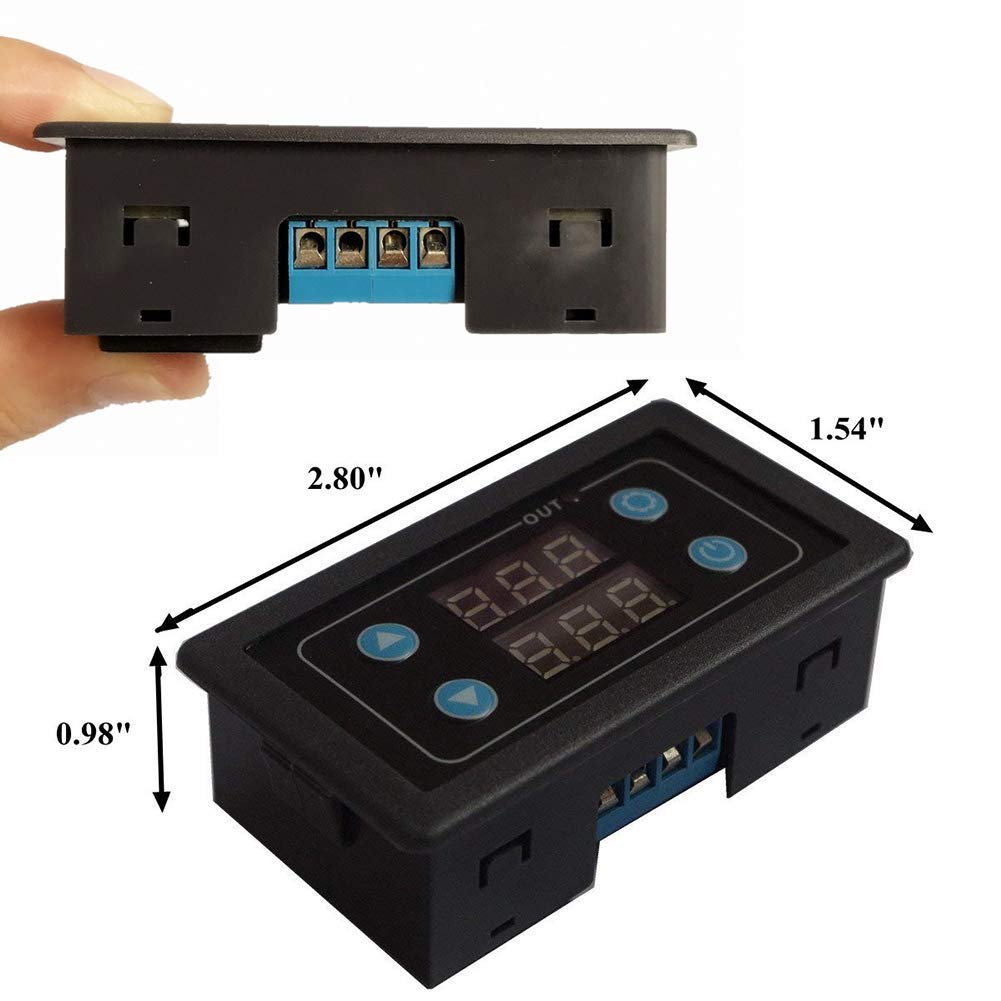

ParameterCycle Timer relay Support Voltage Input AC85-265V, Maximum Power <2000W, Maximum Current 10A, Module Size 71x39x25mm/2.80"x1.54"x0.98" (L*W*H).
ApplicationThe Digital timer delay can be used for timing, delay, cycle timing, intermittent timing occasions and so on, such as the descending machine DIY, timing switch, timing alarm control board. Kindly Tips We have uploaded the user manual on the Amazon page at technical specification or under the IMAGE, please download it and read it before you use it.

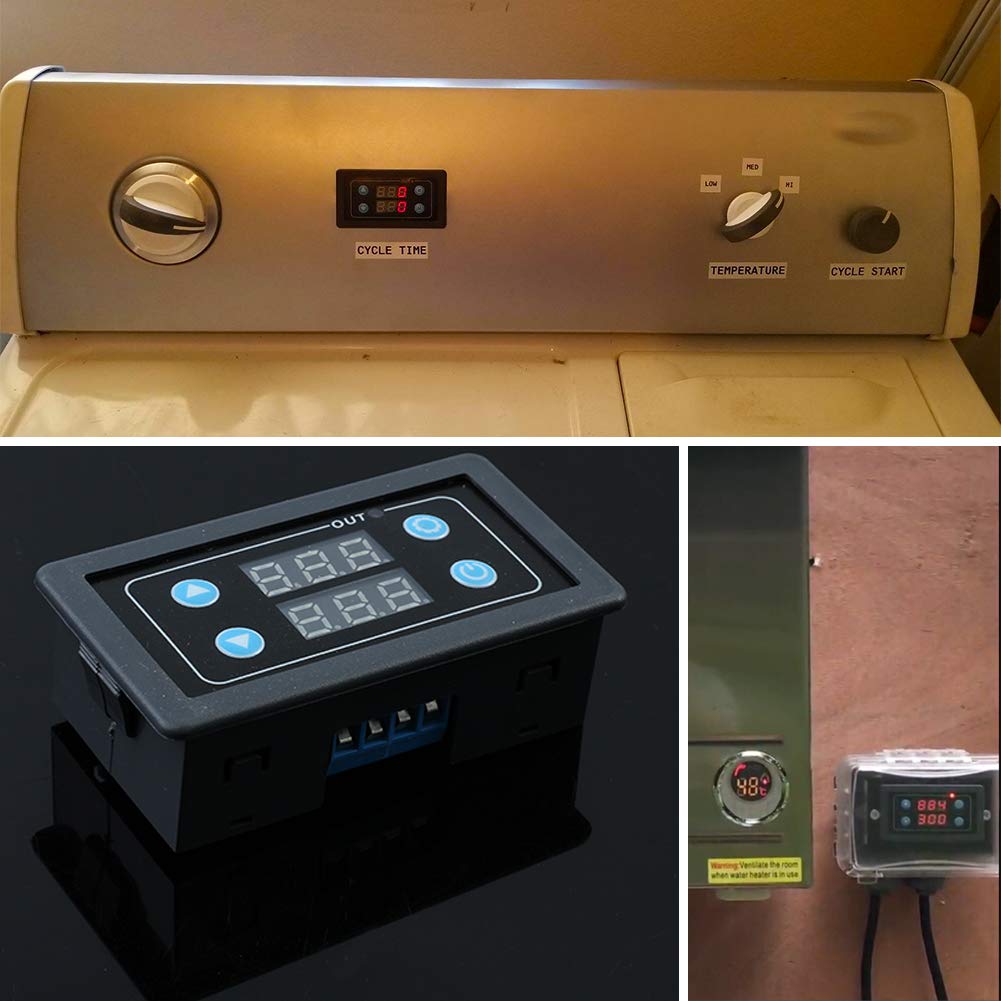

Works great once you figure out how to program it. I went to the manufacturer website and printed then out. Very simple if you go step by step. Using it to control a vacuum pump on a chamber for degassing epoxy
