SKU:77480141

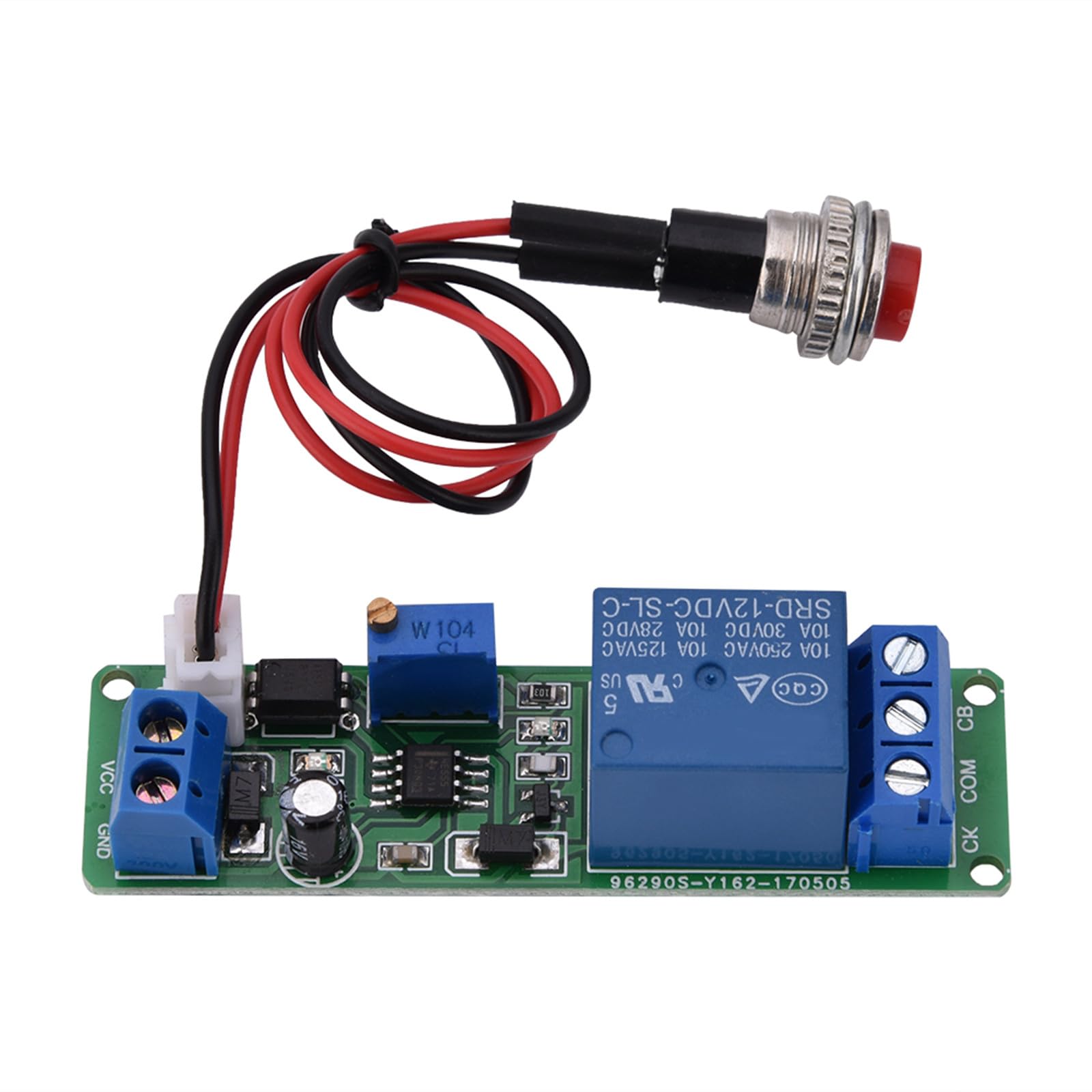

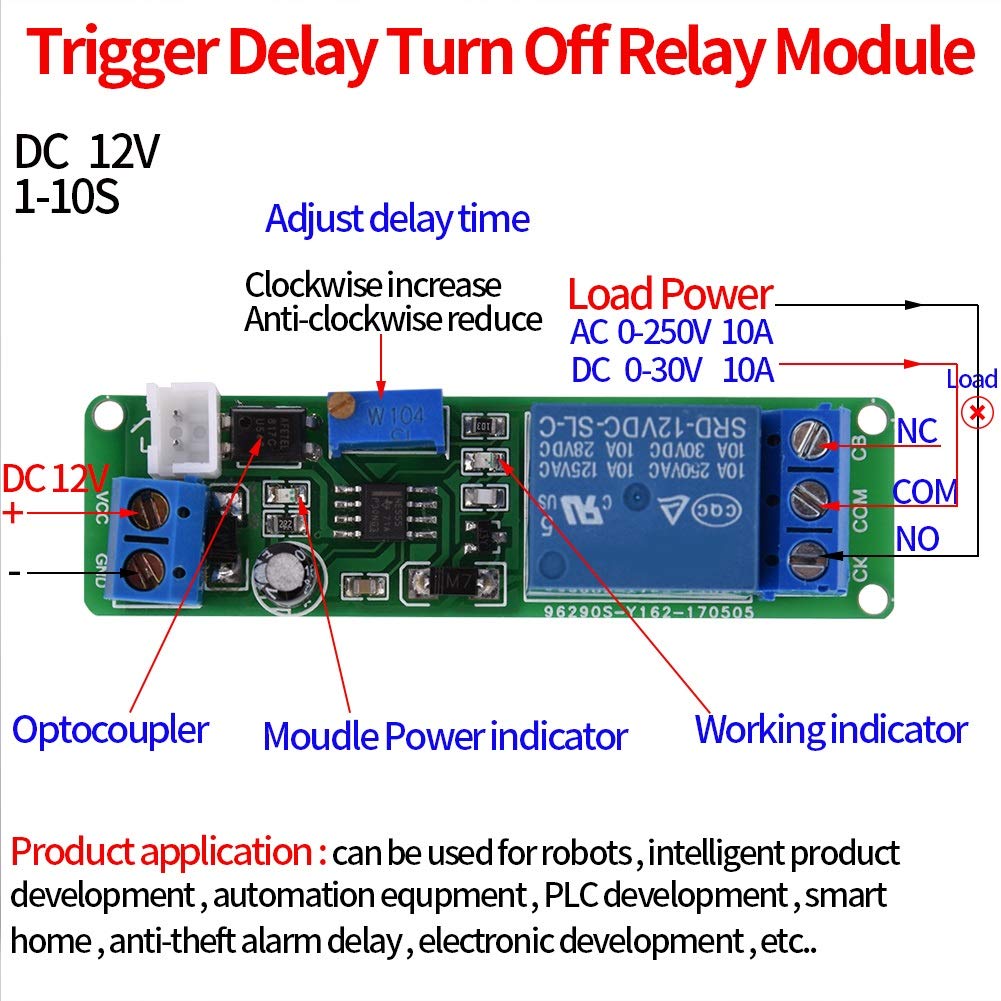

Features: It is a timer relay module with high precision, stable and reliable performance.It support reverse input protection and comes with a trigger button switch.Power on and press the trigger switch to turn on load, and turn off load after delay time.The time range is from 1 second to 10 seconds adjusted by potentiometer; if you need longer time, simply replace a larger capacitor or potentiometer.Widely used on timer operating equipment, robots, intelligent product development, automation equipment, PLC development, smart home anti-theft alarm delay, electronic development, etc. Specifications: Working Voltage: 12V Load Capacity: 10A 250VAC, 10A 30VDC Size: 67.6*19.2mm / 2.66*0.75" Quantity: 1 Package Includes: 1 x Timer Module
High Precision Control Crafted for consistent performance, this DC 12V timer relay module offers a precise delay range between 1 to 10 seconds, ideal for various timing needs.
Enhanced Safety With reverse input protection, timing relay is safeguarded against incorrect voltage connection, ensuring reliability and long life for your projects.
Simple Operation A user-friendly trigger switch makes operating the adjustable timer module straightforward, powering on and commencing the delay with a single press.
Easily Adjustable Customize the delay duration with ease using the onboard potentiometer; for longer delays, simply swap in a larger capacitor or potentiometer.
Versatile Applications Timer delay turn OFF module is perfect for an array of uses, from DIY robotics to smart home systems and electronic developments.
Like - quick fix to a timing need. Wish it would one shot. IE one count no matter how long button is held depressed.My use is in an AM transmitter with a cranky power control. When it is time for Day power, the transmitter won’t go to full power, without manually holding the power raise button. So, I’m using this to hold the power control for 35 seconds at day power command time!!What button do you need to push !?????
