SKU:74294155

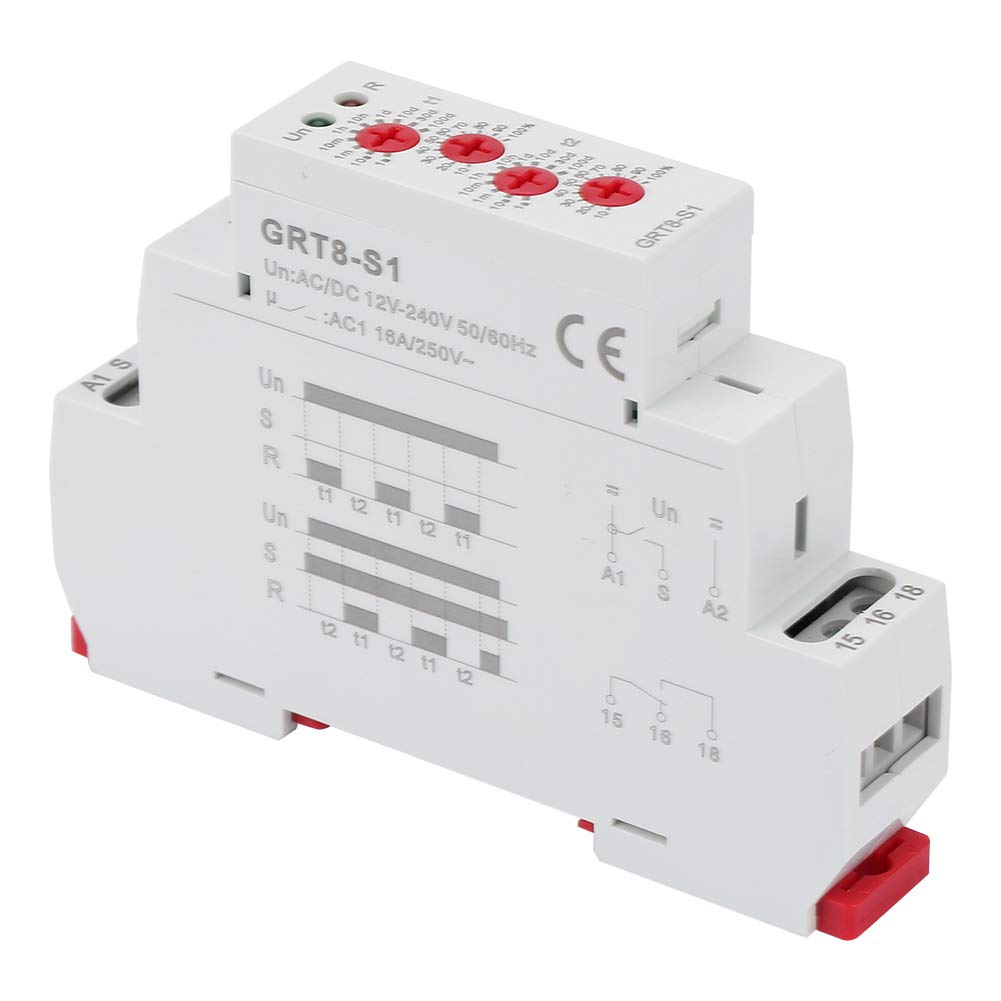

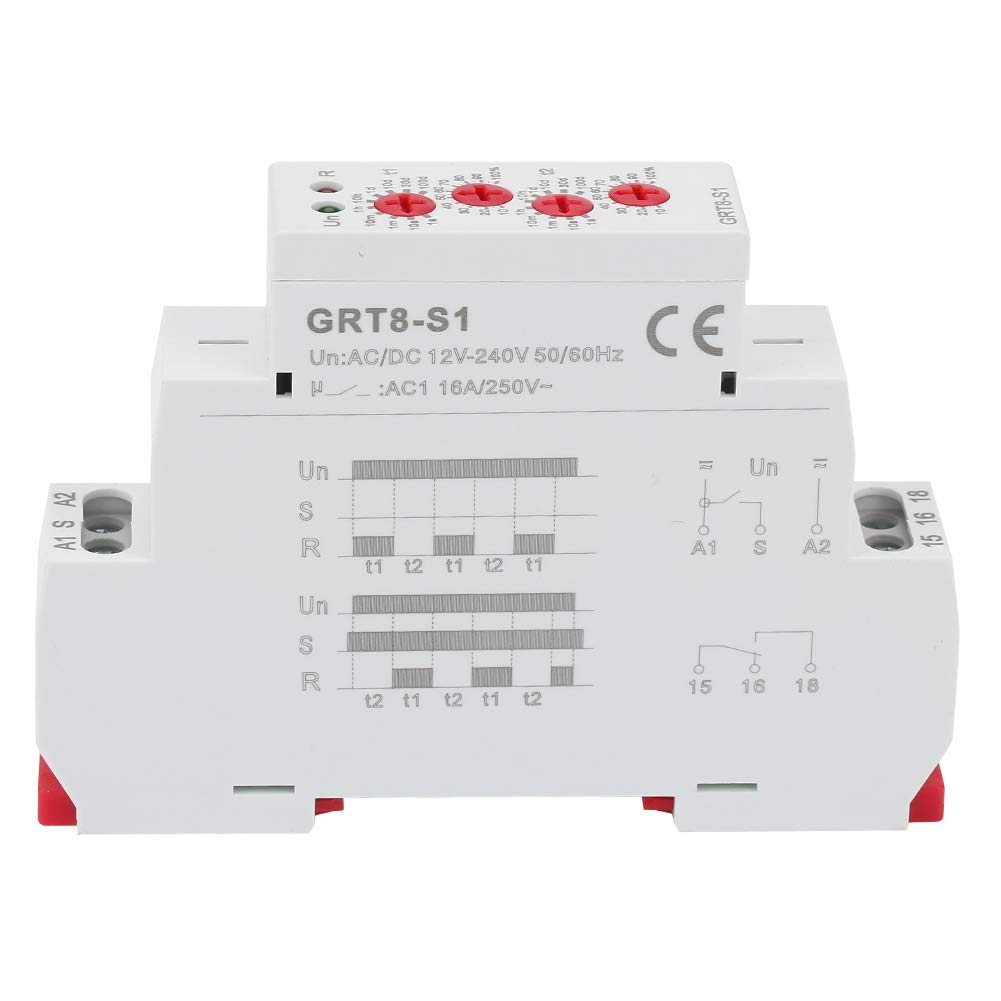

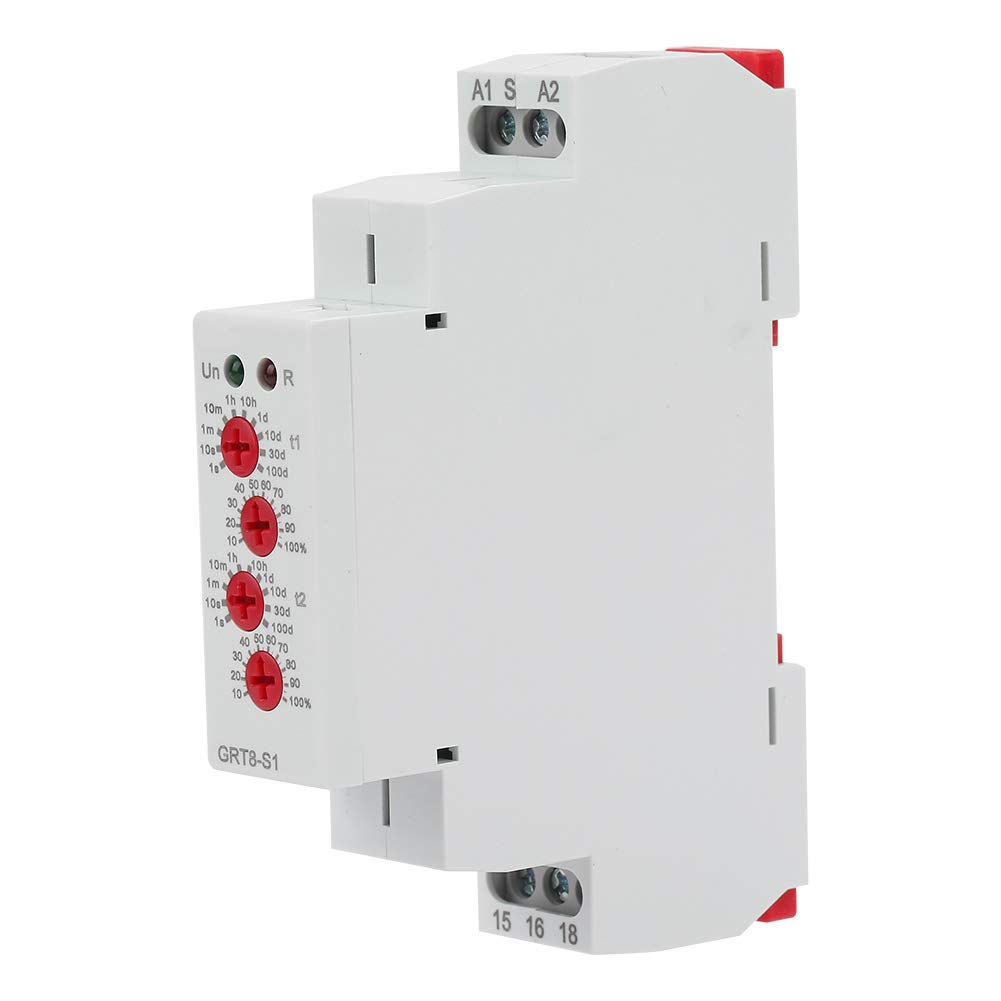

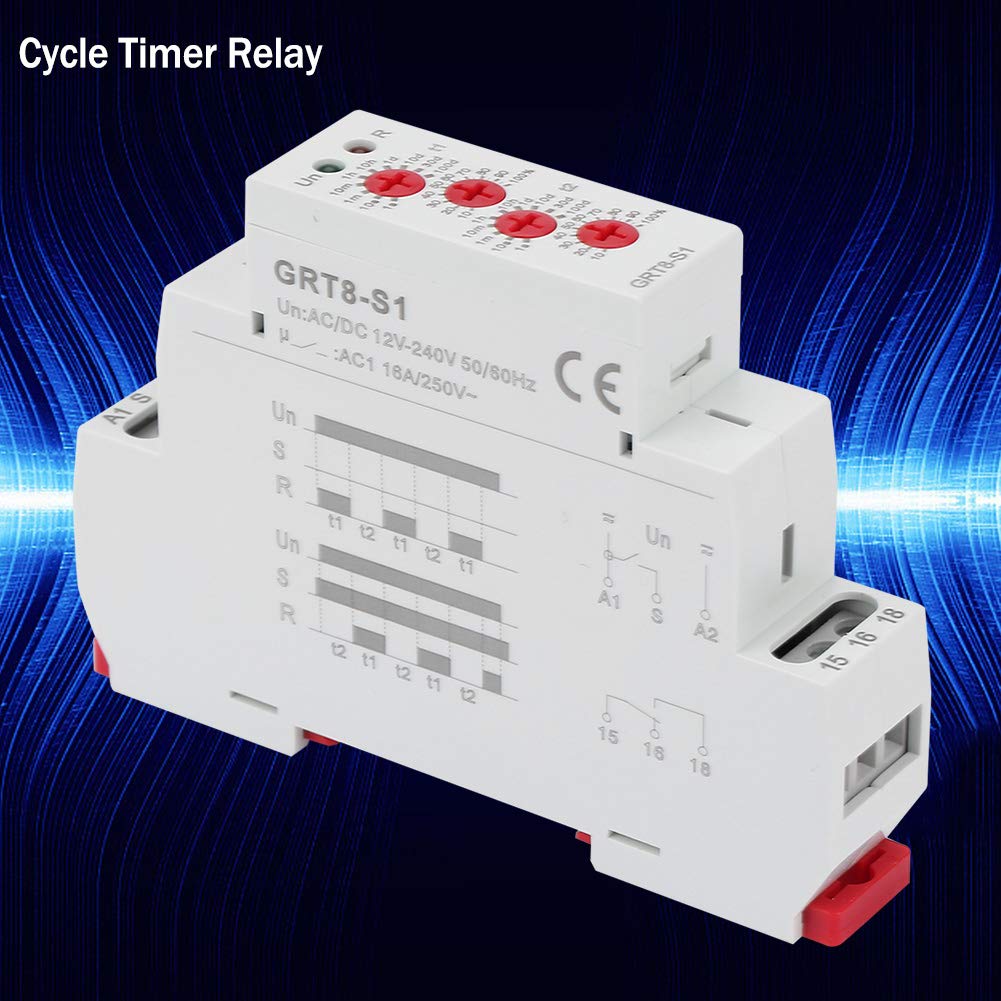

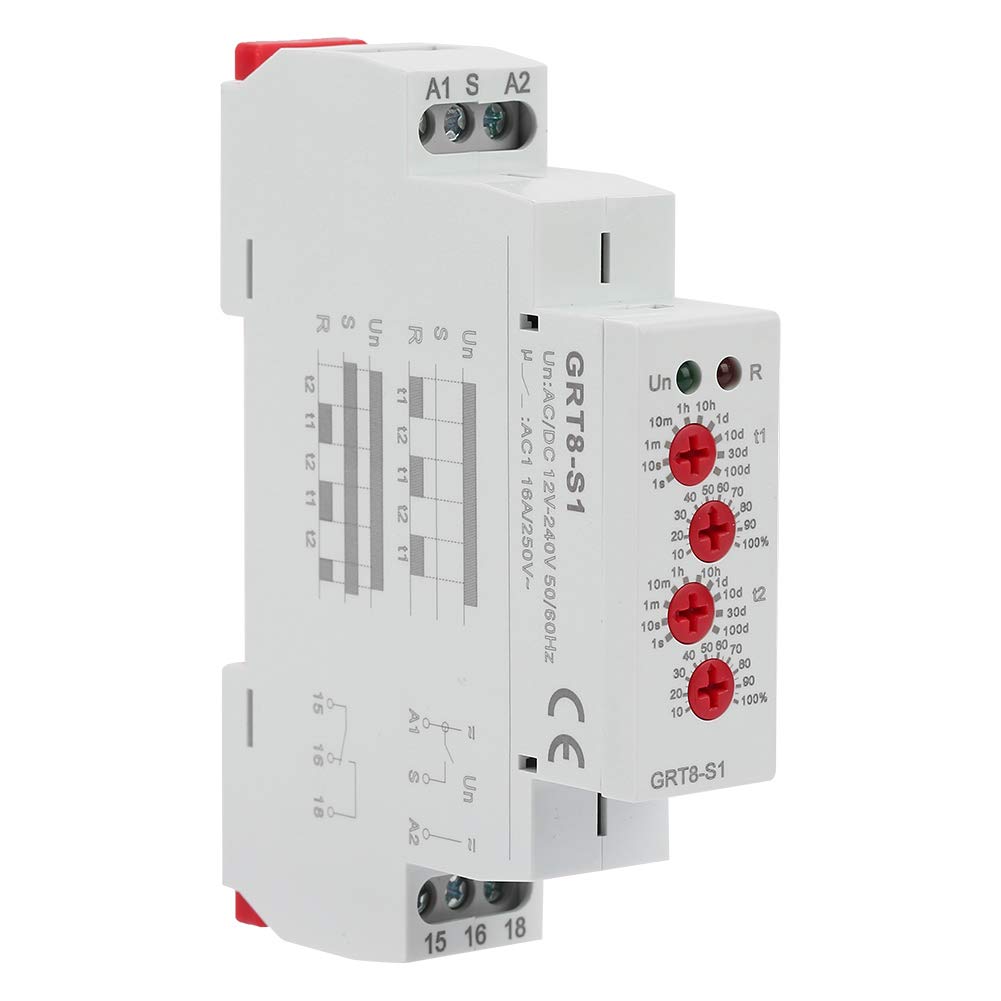

Specification:Model: GRT8-S1Rated supply voltage: AC/DC 12V~240V (50-60Hz)Power consumption: AC 0.09-3VA / DC 0.05-1.7WDelay time range: 0.1s-100days, NO, NC Setting method: knobSetting accuracy: 10%Repeated accuracy: 0.2%Temperature fluctuation error: 0.05%/℃, at = 20℃Output contact: 1 x SPDT, 16A/AC1Minimum switching power: 500mWPower indicator: Green LEDOutput relay indication: Red LEDMechanical life: 1x107Electrical life: 1x106Reset time: 200msWorking temperature: -20℃~55℃Storage temperature: -35℃~75℃Mounting method: 35mm DIN railProtection grade: IP20Wiring capability: 1x2.5mm2 / 2x1.5mm2Dimensions: 90*18*64mm / 3.54*0.71*2.52inPackage weight: Approx. 75g/2.6ozPackage List:1 * Cycle Timer Relay
Time setting for delay ON and OFF is separated so you can set different delay time.
Super wide delay time range, 0.1 second - 100 days settable (10 selections).
Switch different working modes by short-circuiting S-A1.
Relay working status is indicated by LED indicators.With small volume, this relay can be mounted on 35mm DIN rail.
It is used for cycle delay control, providing periodic energizing, lighting control and heating control for electric circuit.
used on solar panel system driving a fan motor.
