SKU:48849502

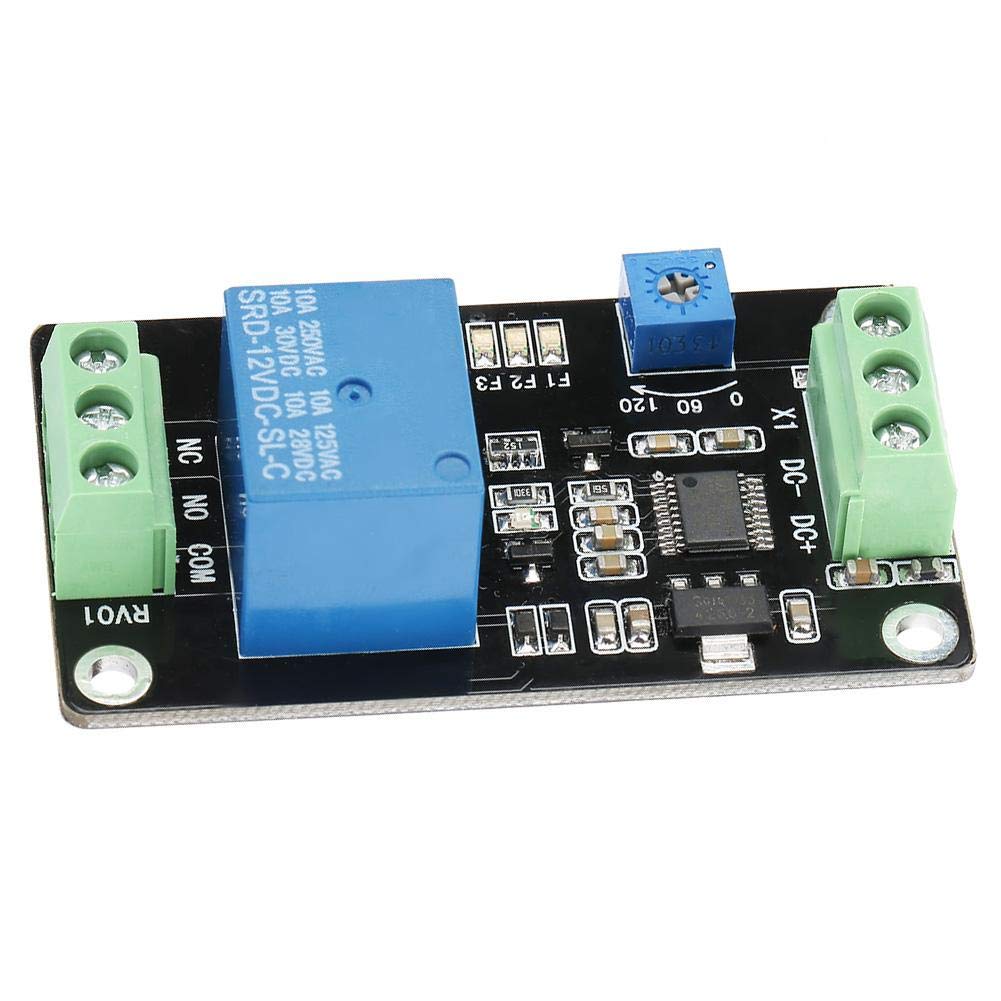

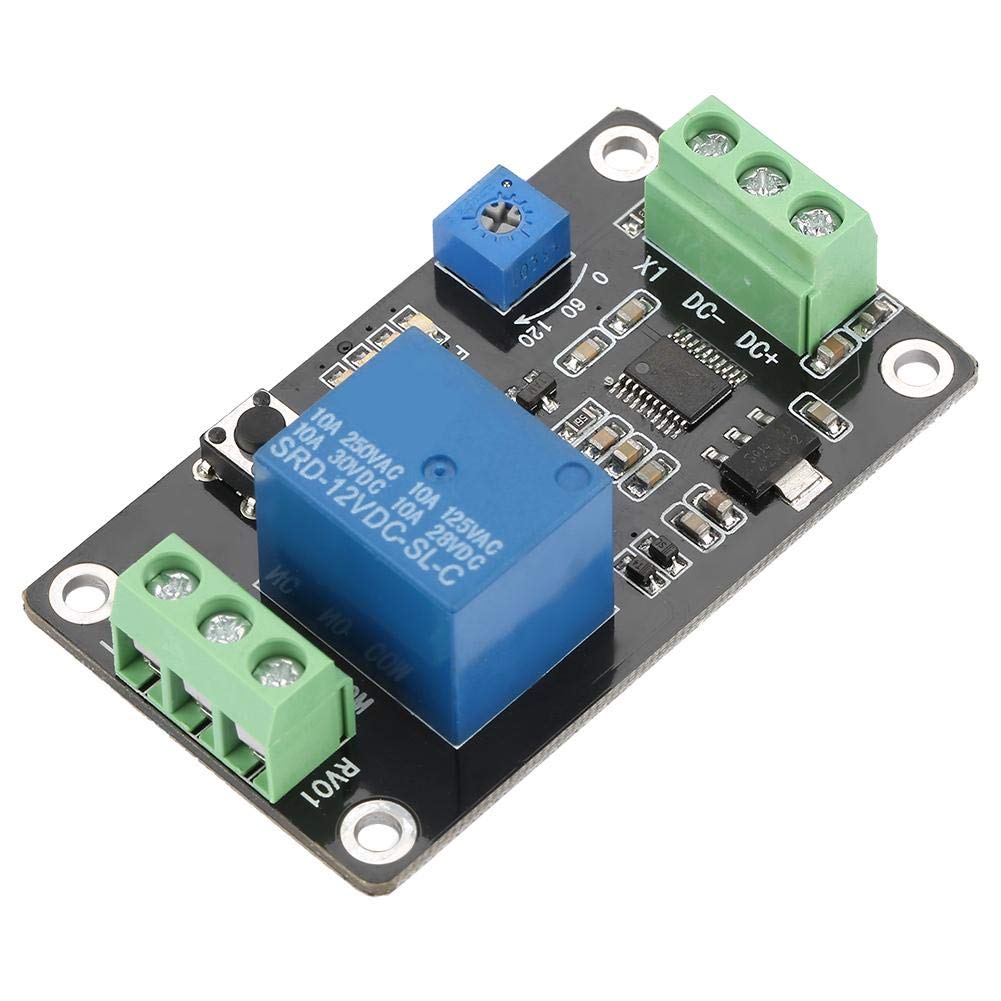

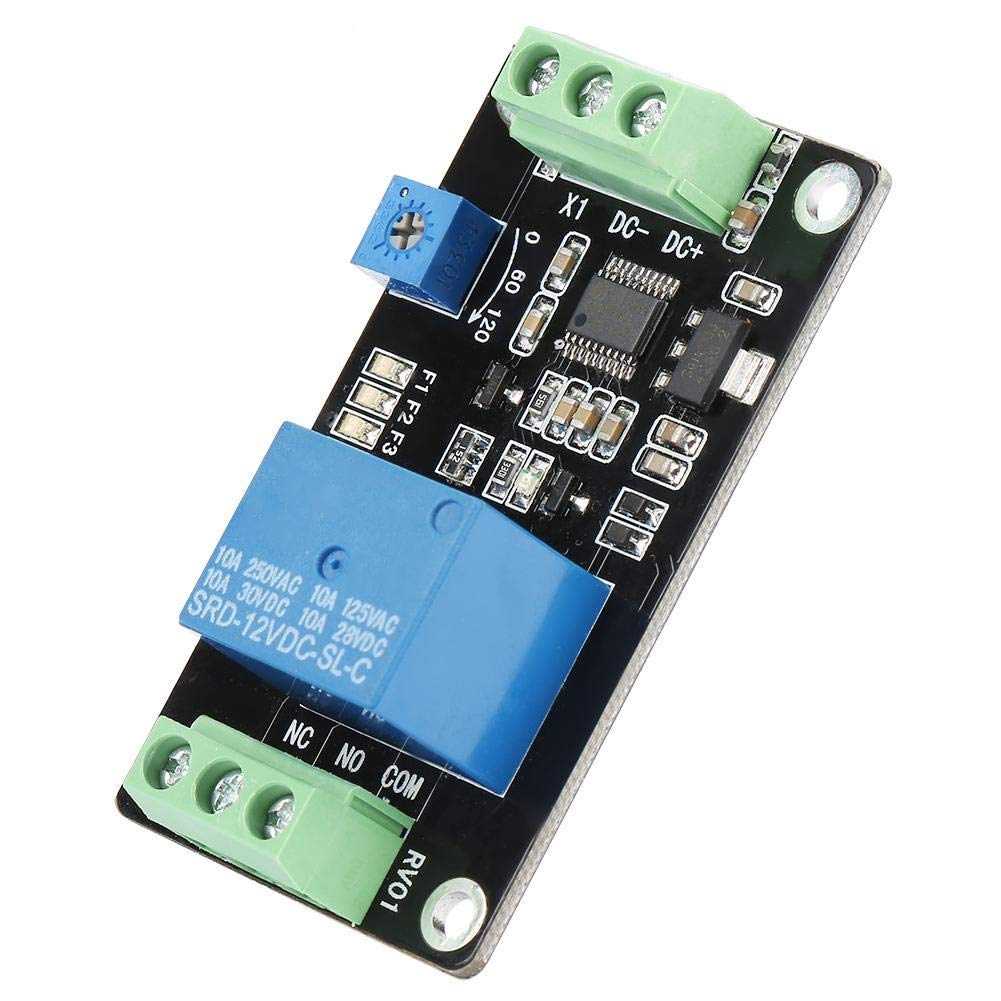

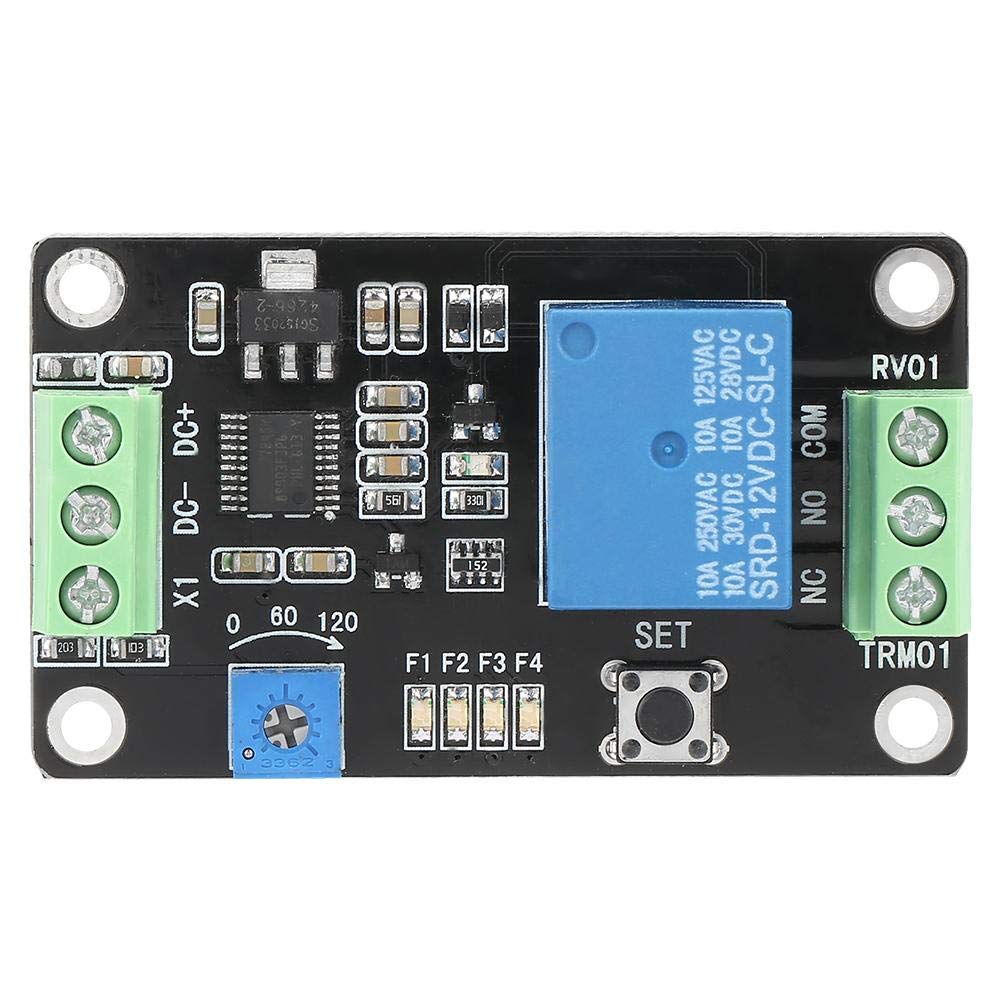

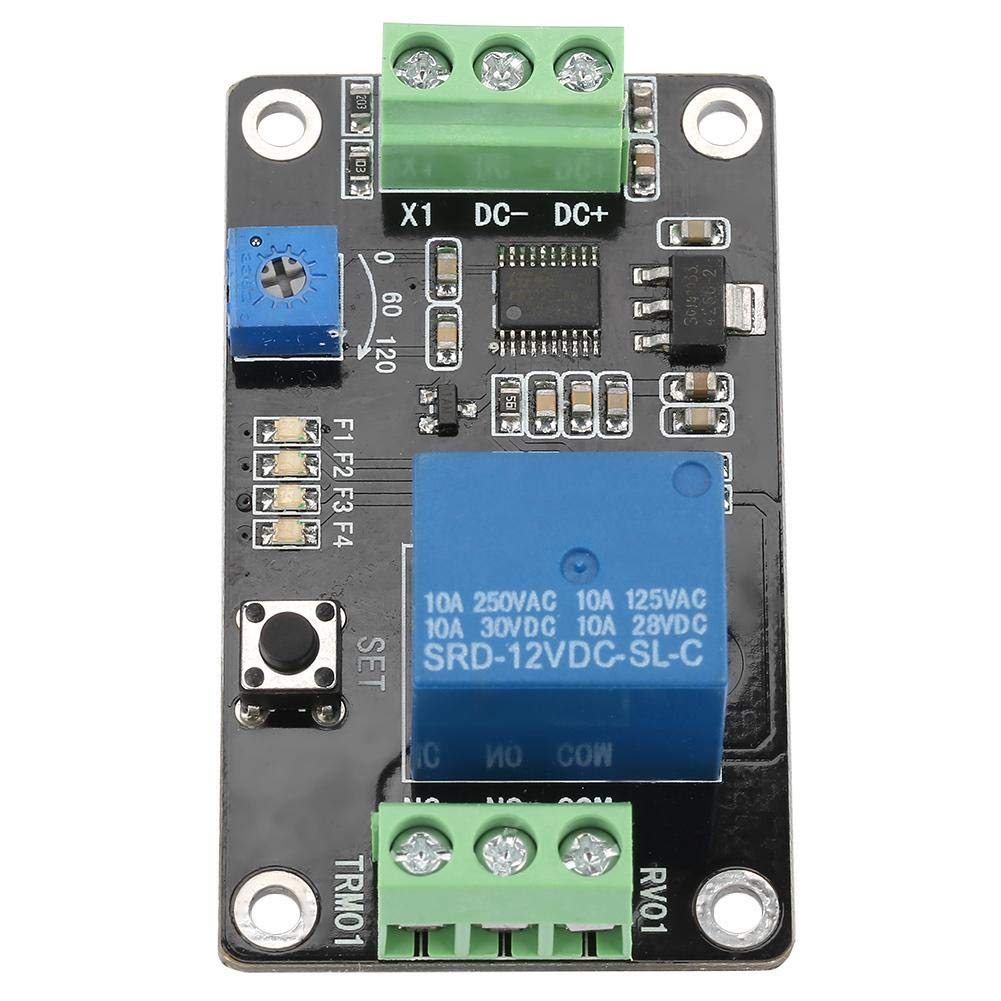

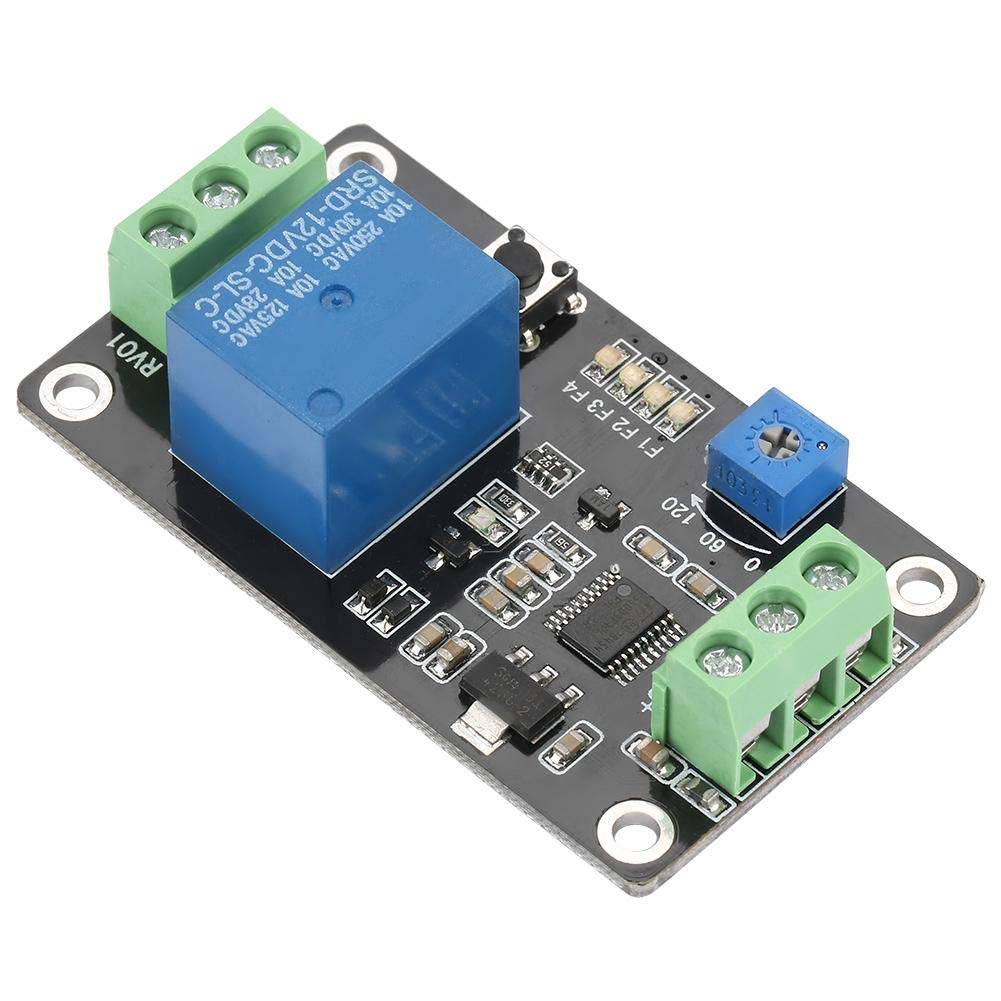

Time relay self-locking on off timer switch Super 555 timer DC 5V/12V/24V with delay ON, delay OFF, self-locking and trigger delay function (DC12V) The parameters can be saved and the settings are not lost when switching off. There are three operating voltage versions of 5V/12V/24V to choose from. With delay ON , delay OFF, self-locking and trigger delay function. The TRM01 delay relay module uses high-quality components and features stable performance and easy. It can be used in a variety of control situations that require self-locking with delay. The module is preset with 4 functions to meet a variety of To meet application requirements, and can customize and add other specific functions according to user needs. Specification: Working voltage: DC 5V, 12V, 24V (optional ) Working current: Working temperature: -20 ~ 60 (limit range -30 ~ 70 ) Size: 60 * 35 * 20 mm/2.36 * 1.38 * 0.79 inch Module interface: The voltage/signal input of the module has 3 wiring terminals. 1 . DC +: DC power supply positive 2. DC-: DC power supply negative 3. X1: Input signal detection interface The relay load output has 3 wiring terminals. 2. NO: Relay is normally open 3. NC: Relay normally closed interface Package l is: 1 * Time relay delay
With delay ON, delay OFF, self locking and delay function.

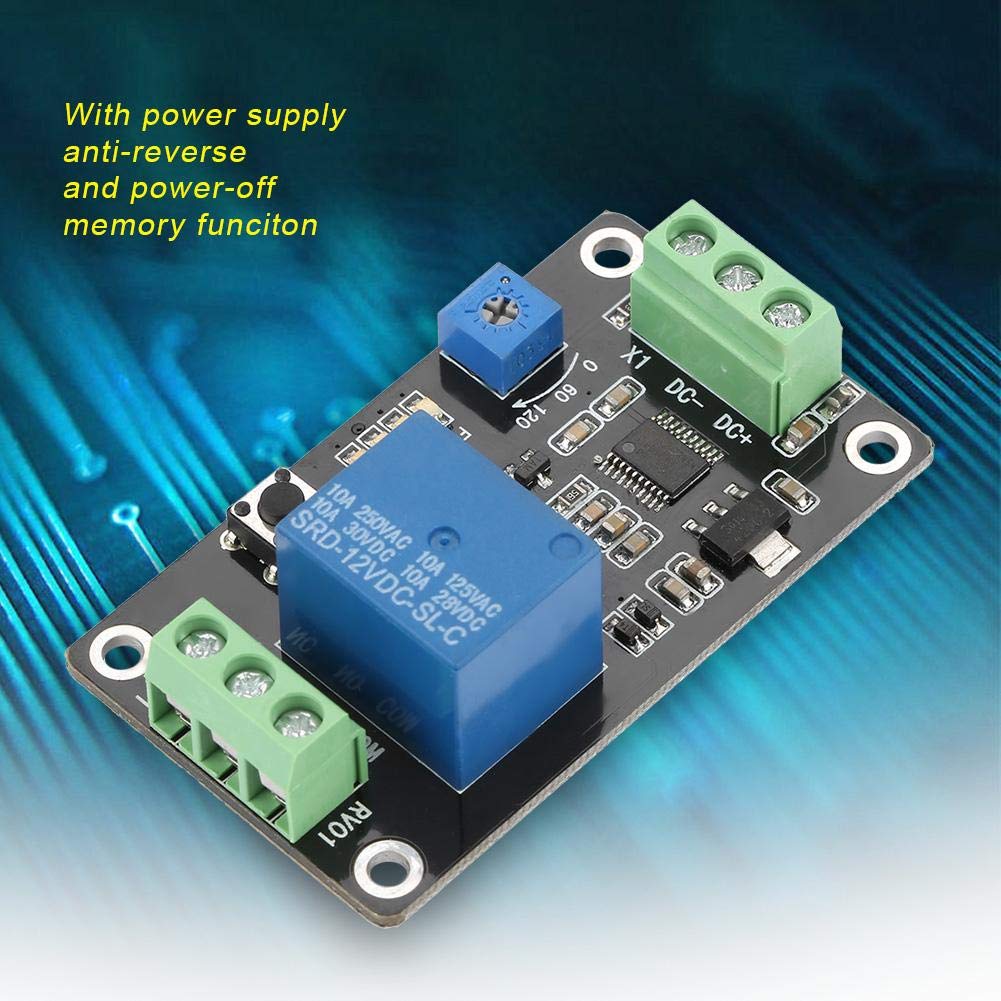

With power supply anti reverse function to prevent damaging the module.
There are three working voltage versions of 5V/12V/24V for users to choose from.
The delay time can be arbitrarily set between 0.1 seconds and 120 seconds.
The parameters can be saved, and the setting contents are not lost when power off.
I am using it to trip the “try me” connection and footpad connection on Halloween animatronics using ky-008 laser transmitter/receiver and needed this to prevent repeated triggers from people walking by before the animatronic finished it’s routine. About every 4-5 trips of a sensor we are using it adds an extra 10-15 seconds. But I might be because repeated trips play waiting “adds some time”
