Keenso GRT8-A2 Timer Relay - DIN Rail Mount, 12V-240V AC/DC, Single Function Industrial Time Delay Relay for Automation Control | Perfect for HVAC Systems, Motor Controls & Industrial Machinery

Product Description

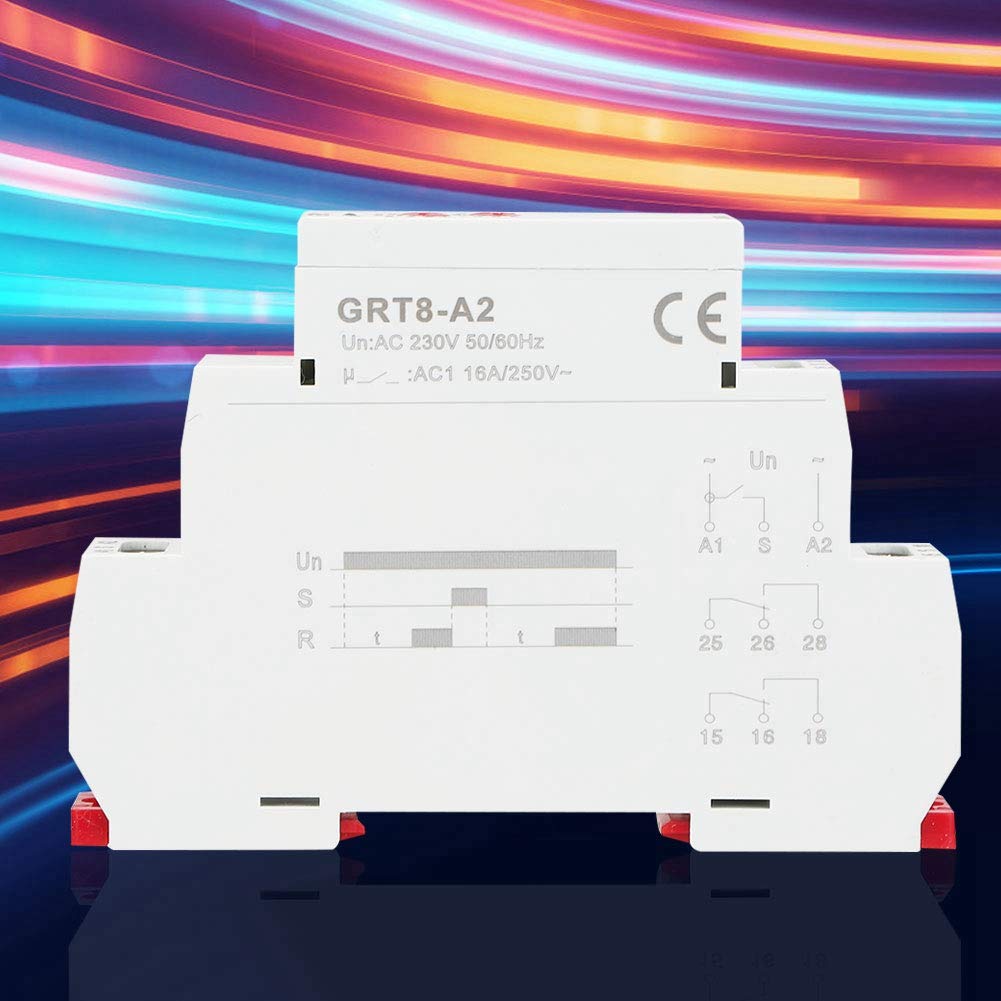

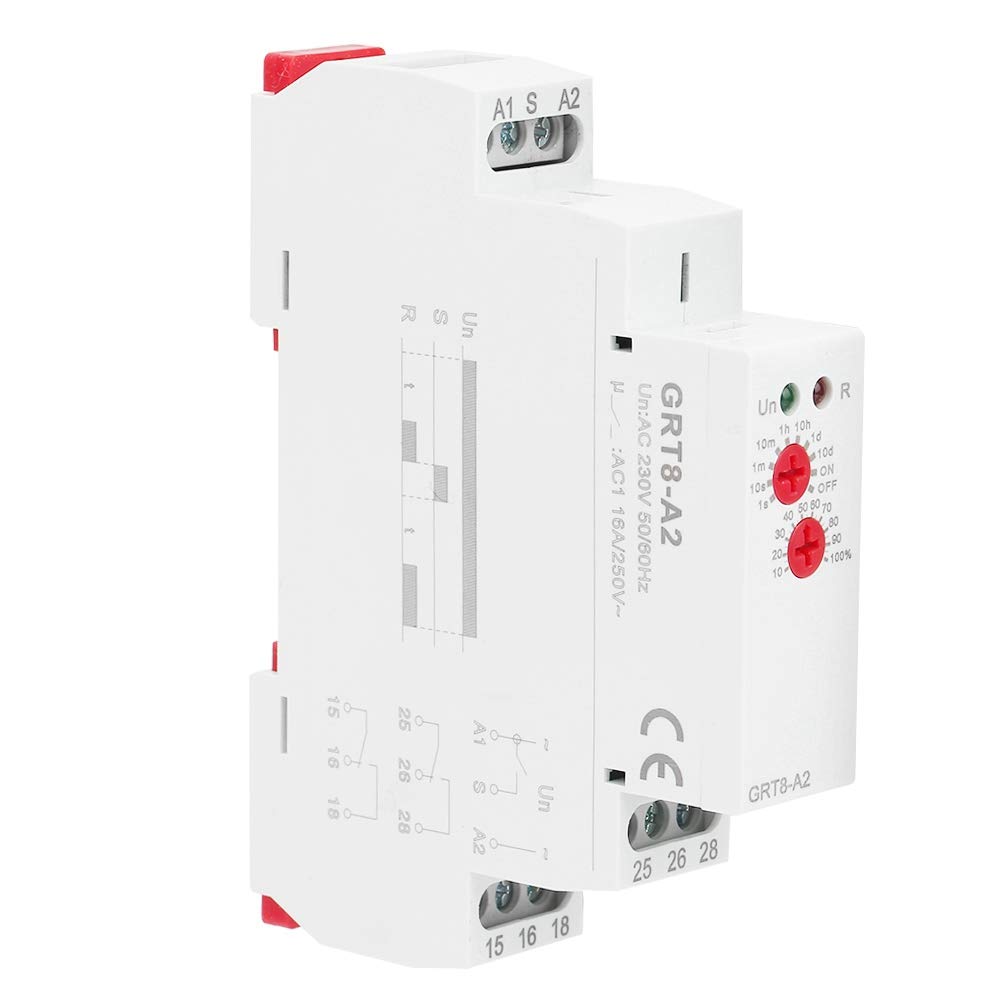

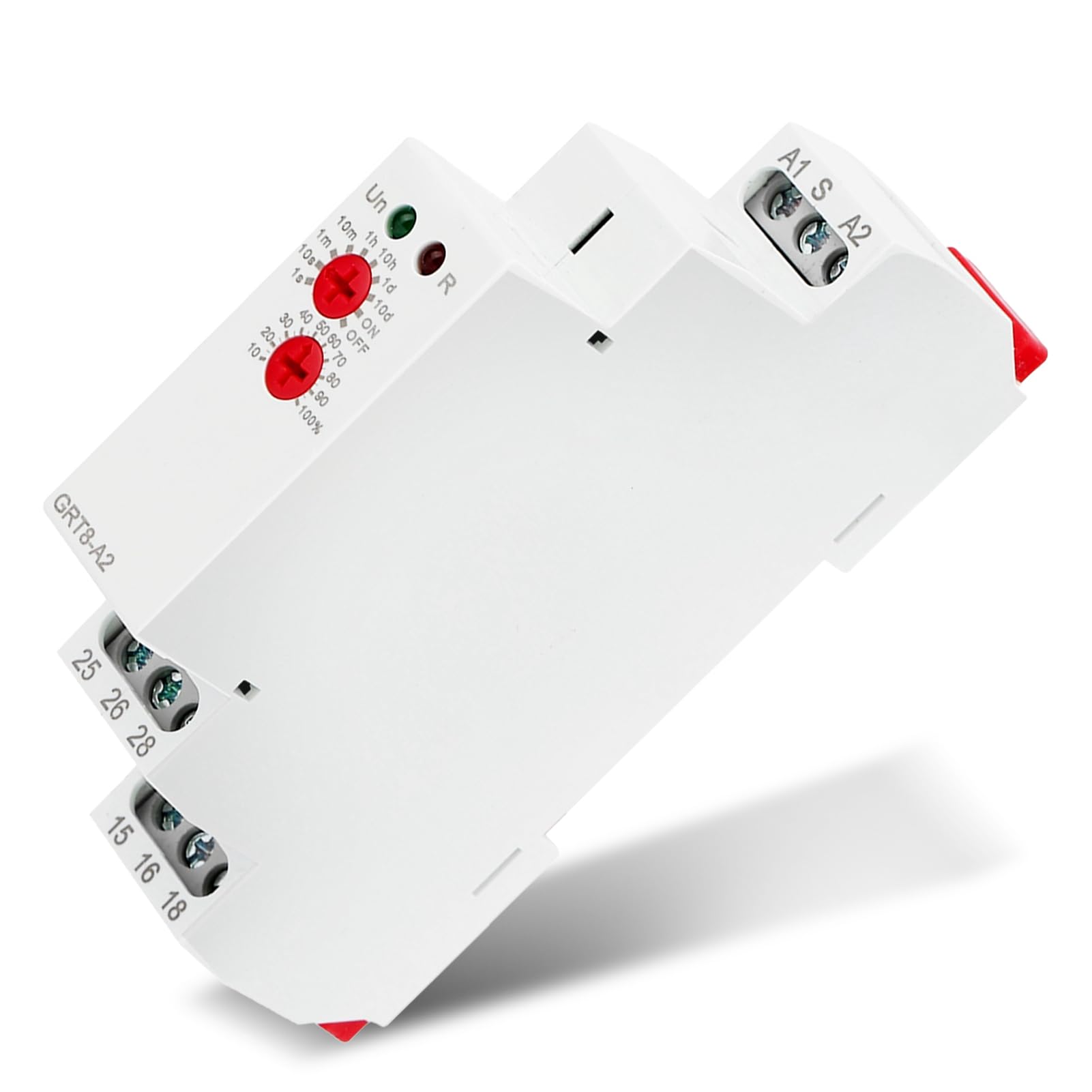

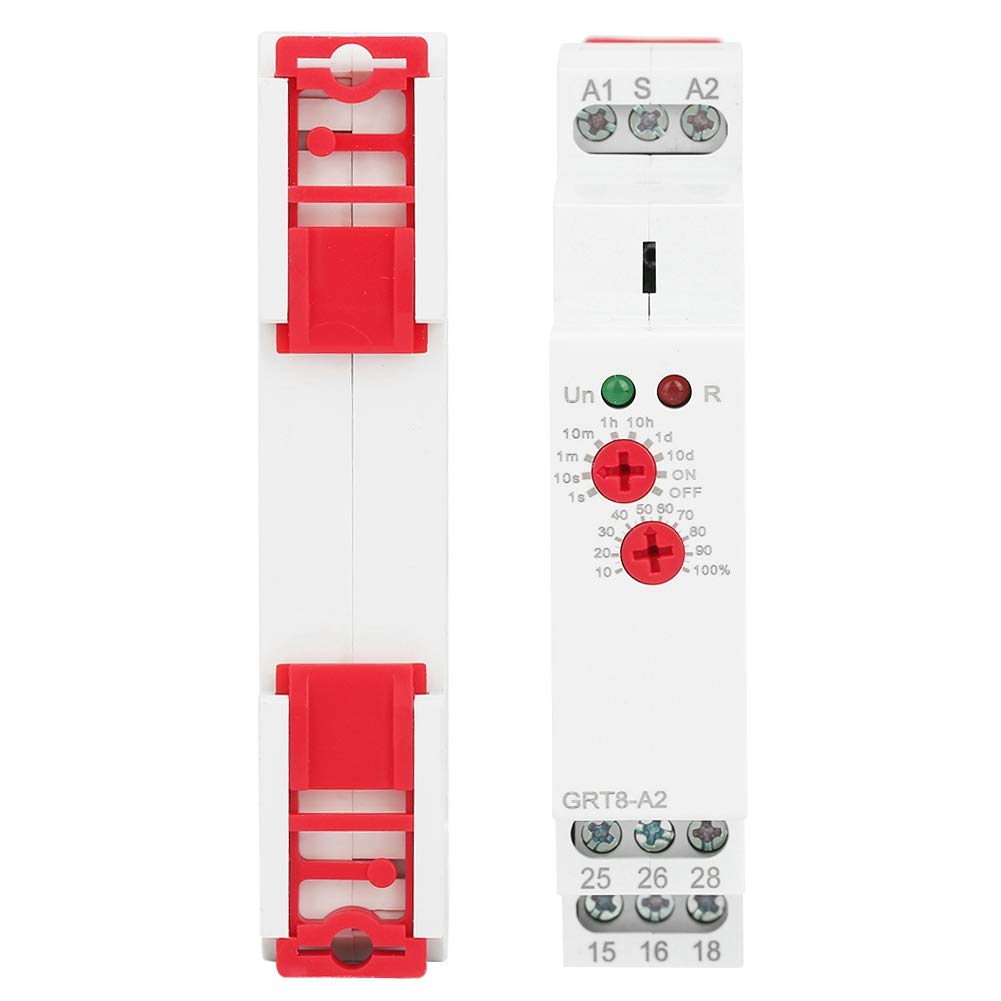

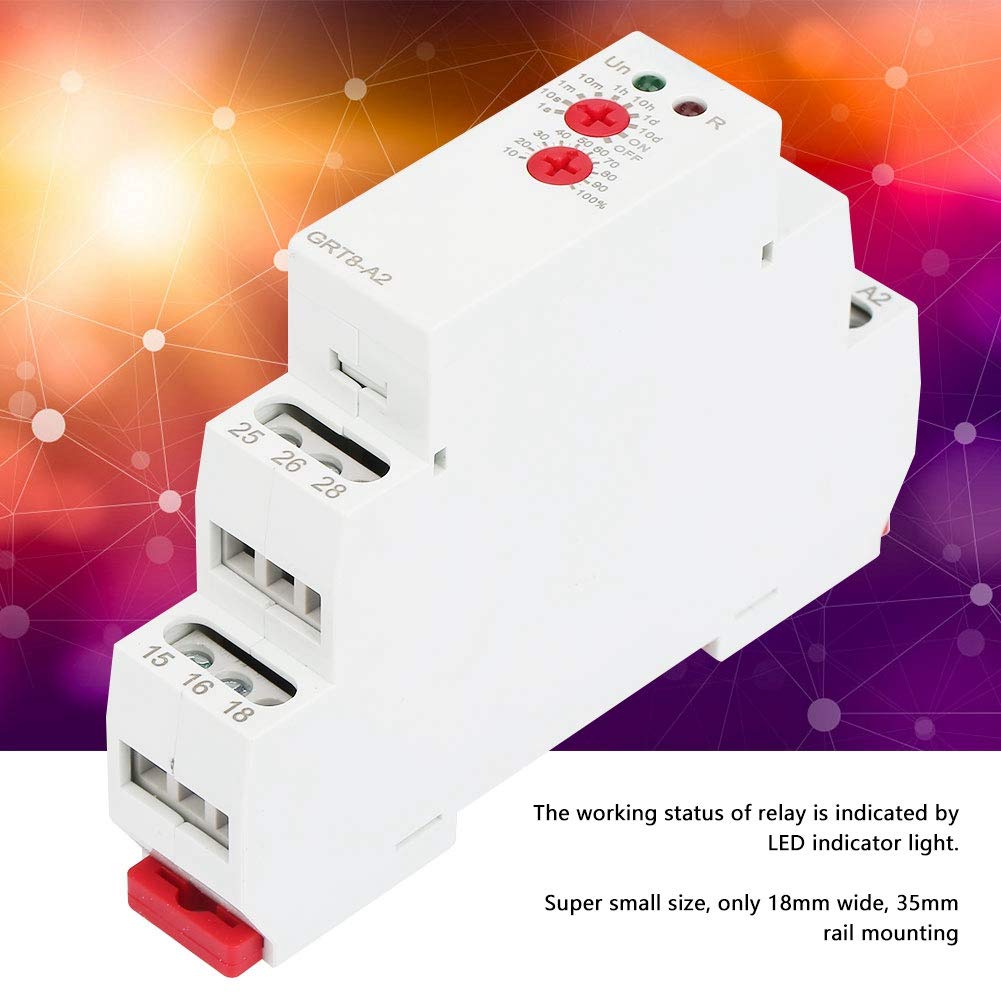

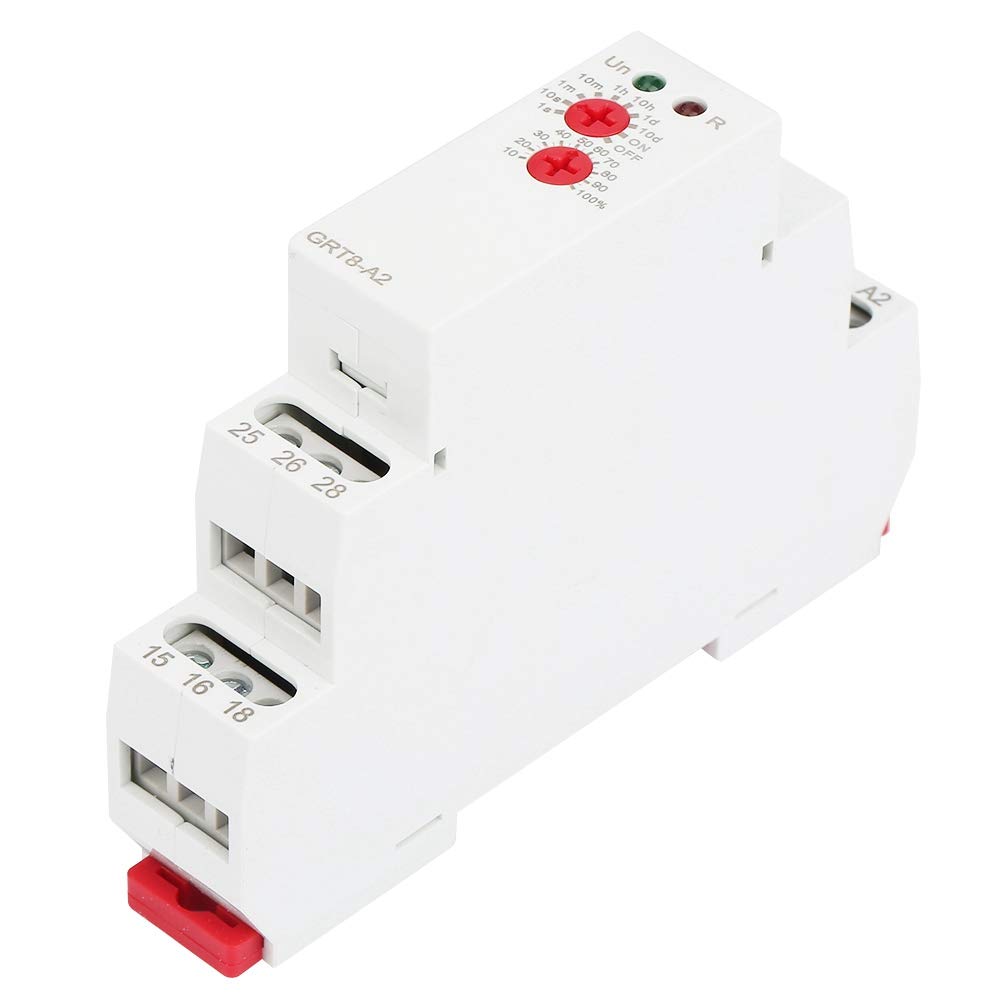

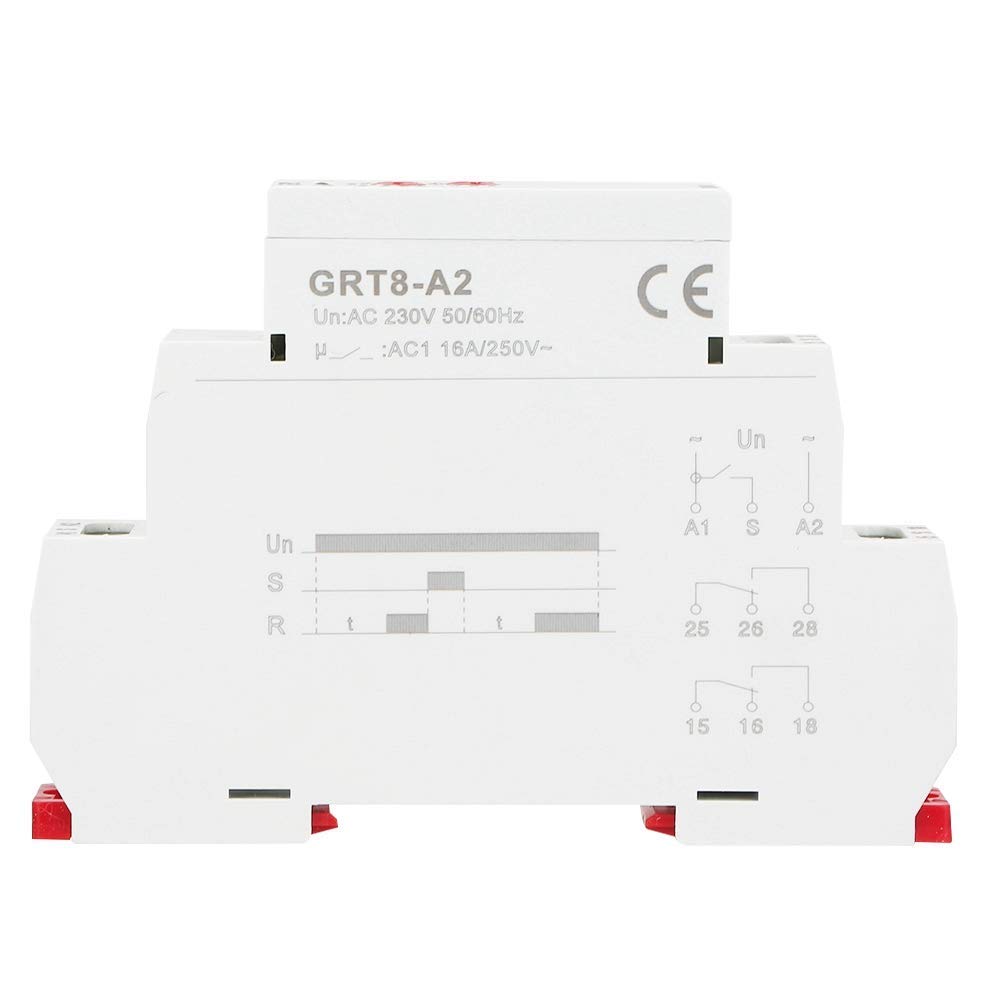

Keenso GRT8-Timer Relay AC230V, AC/DC 12V-240V Single Function Din Rail Time Relay Industrial Control Auto Timer Relay(AC230V) GRT8-Time Relay -- Here are AC/DC 12~240 V wide working voltage specification (optional). Single function time relay, delay can be directly set through the panel knob, convenient and intuitive LCD Display -- The working status of relay is indicated by LED indicator light, clear display, easy to use Ultra-wide Delay Range -- Super wide time delay setting range of 0.1s - 10days. Delay connect or disconnect the line, such as control heating elements on time, the working time of the pump, fan delay disconnect Keenso GRT8-Single Function Din Rail Time Relay Industrial Control Auto Timer Relay Specification: Type: AC230V, AC/DC 12V-240V(Optional) Function: power on delay Power terminal: A1-A2 Rated control power supply voltage :AC/DC 12-240 v (50/60 hz) Power consumption: AC 0.7-3 w /DC 0.5-1.7 w Power supply allowable fluctuation range: -15%; + 10% Power indicator: Green LED Delay range: 0.1 second -10 days, normally open NO, normally NC close Setting mode: knob Setting accuracy; 5% Repeat accuracy: 0.2% Temperature fluctuation error: 0.05%℃,at=20℃ Output: 2 sets of switching contacts 16A/AC250VAC Minimum switching power: 500 mW Output relay indication: Red LED Mechanical life: 10000000 Long-life electrical (load) : 1000000 Working environment temperature: - 20℃~ 55℃ Storage and transportation environment temperature: - 35℃~ 75℃ Installation: 35 mm rail mounting level: Ip 20 Installation location: any Installation altitude: 2000 meters Pollution level: 2 Wiring capacity :1x 2.5 mm2 or 2x 1.5 mm2 Dimensions :90*18*64 mm/3.5*0.7*2.5 inch Meet the standard: GB 14048.5. IEC/EN 60255-1 Weight: Approx.50 g/1.8oz Package Included: 1 x GRT8-Time Relay
