SKU:40602913

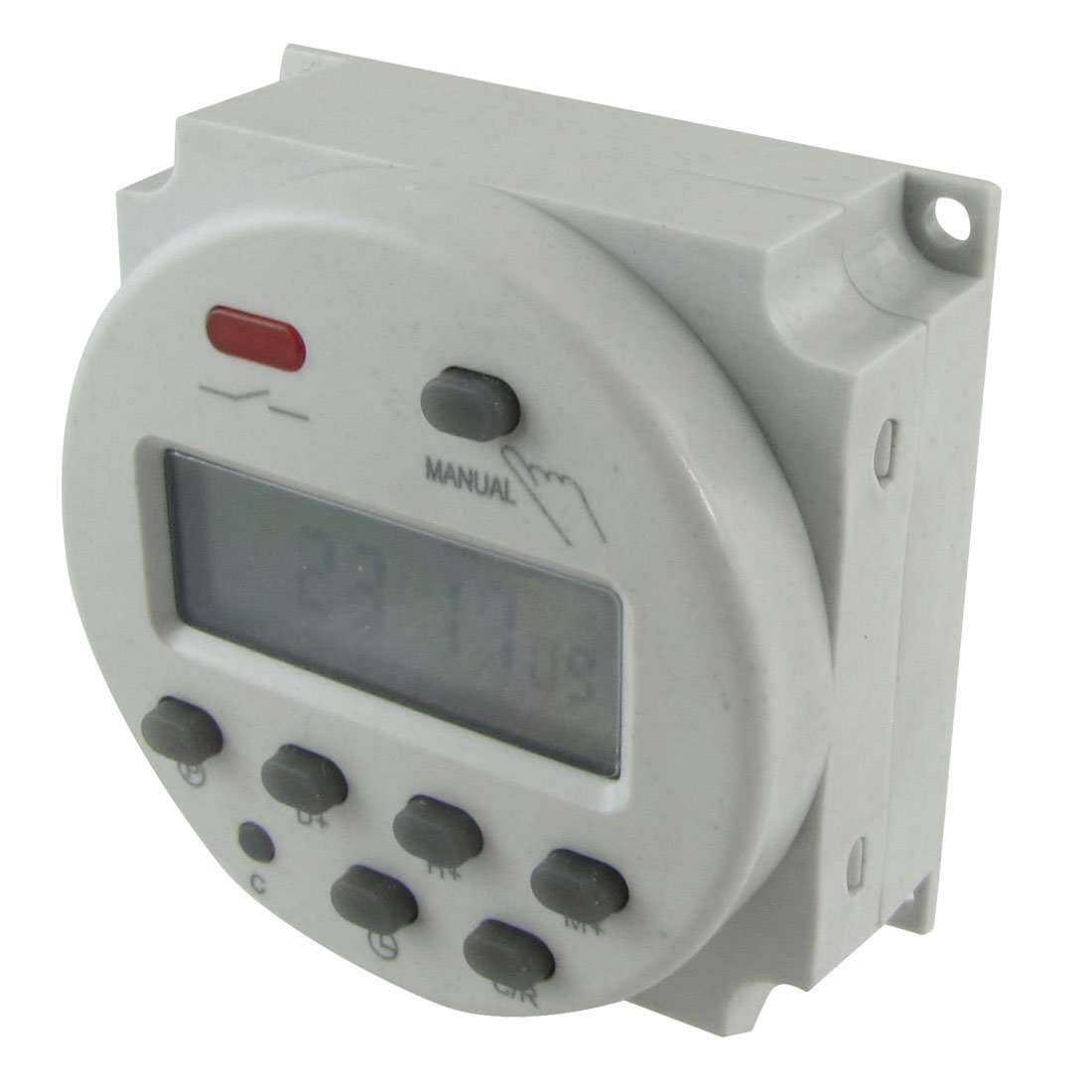

Features: Panel mounted, advanced pre-setting one week before, digital electronic timer switch with daily programs, repeat programs with 17 on/off setting and manual over-ride, auto timer error correction +- 30 sec, weekly.The program timer can automatically switch on and switch off various kinds of electric equipment according to fixed time.Please Note:this product can not directly control high current, please use some SSR AC Contactor if you want to control heating element or other high current load.
Product Name Programmable Timer;Model No. CN101A;Rated Control Voltage AC 110V-120V;Contact Capacity 8A, 250V AC
Hysteresis <=2 sec/day(25C);ON/OFF Operation 17 ON/OFF;Display LCD
Minimum Interval 1 minute;Switching Contact 1 changeover switch;Ambient Temperature -10~+40C
Ambient Humidity 35-85%RH;Mounting Hole Diameter 3mm / 0.12";Overall Size(Approx.) 62 x 60 x 33mm / 2.4" x 2.36" x 1.3"(L*W*H)
Material Plastic, Electronic Parts;Net Weight 70g;Package Content 1 x Programmable Timer1 x Manual
This timer works great for me. It replaced an Intermatic T104 40 Amp timer that I was using for a few house lights. The Intermatic has been going for 20+ years - and still works - but it's loud and was annoying me. Plus the analog dial was inaccurate and I had to tweak it every now and then.Maybe this will last long, maybe it won't - I can switch this out 6 times and it's still cheaper then the Intermatic. Also, this won't handle high current things which the Intermatic can - I wasn't using it for that purpose anyway - so the 16A that this can handle is enough for me. This doesn't handle DST automatically either, but changing the time is easy enough. The instructions are indeed cryptic as others have mentioned. I figured out the wiring diagram after staring at it for a few minutes (I'm not particularly adept at electronics but have a little understanding of things). Type A worked for me - Hot to terminal one - Jumper from Terminal 1 to Terminal 3, Neutral on Terminal 2, Load on terminal 4.Anyway, very happy with this. Especially the silence.
