YOUTHINK 555 Timer Module - Multifunction Infinite Cycle Timer with Automation Delay (FRM01) for DIY Electronics, Robotics, and Home Automation Projects

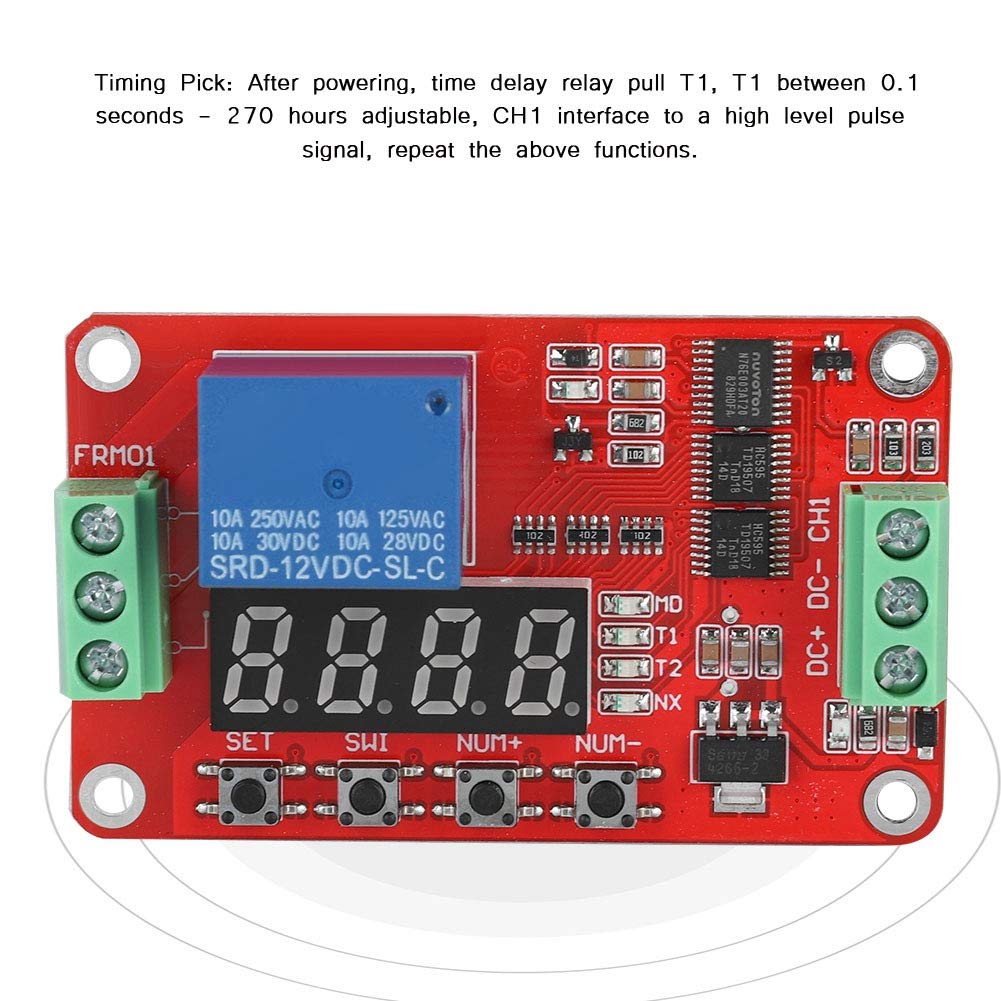

Timing Pick After powering, time delay relay pull T1, T1 between 0.1 seconds - 270 hours adjustable, CH1 interface to a high level pulse signal, repeat the above functions.

Timing off When the power relay, time delay relay disconnected T1, T1 between 0.1 seconds - 270 hours adjustable, CH1 interface to a high level pulse signal, repeat the above functions.

Timing pull off again After power relay to not pull, the delay time T1 reaches the relay is energized, pull the relay off after T2 arrival time, delay time T1 and T2 in 0.1 seconds - 270 hours between adjustable, CH1 interface to a high pulse signal, re

Infinite loop timing mode 1 After power relay to not pull, after the delay time T1 reaches the relay is energized, pull the relay off after time T2 arrives, and then repeat the above condition, the delay time T1 and T2 at 0.1 adjustable between second

Finite loop timing mode 1 5 on the basis of functionality, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds - 9999 seconds adjustable cycles NX adjustable between 1-9999 times to CH1 interface a high pulse signal, th
