SKU:10565222

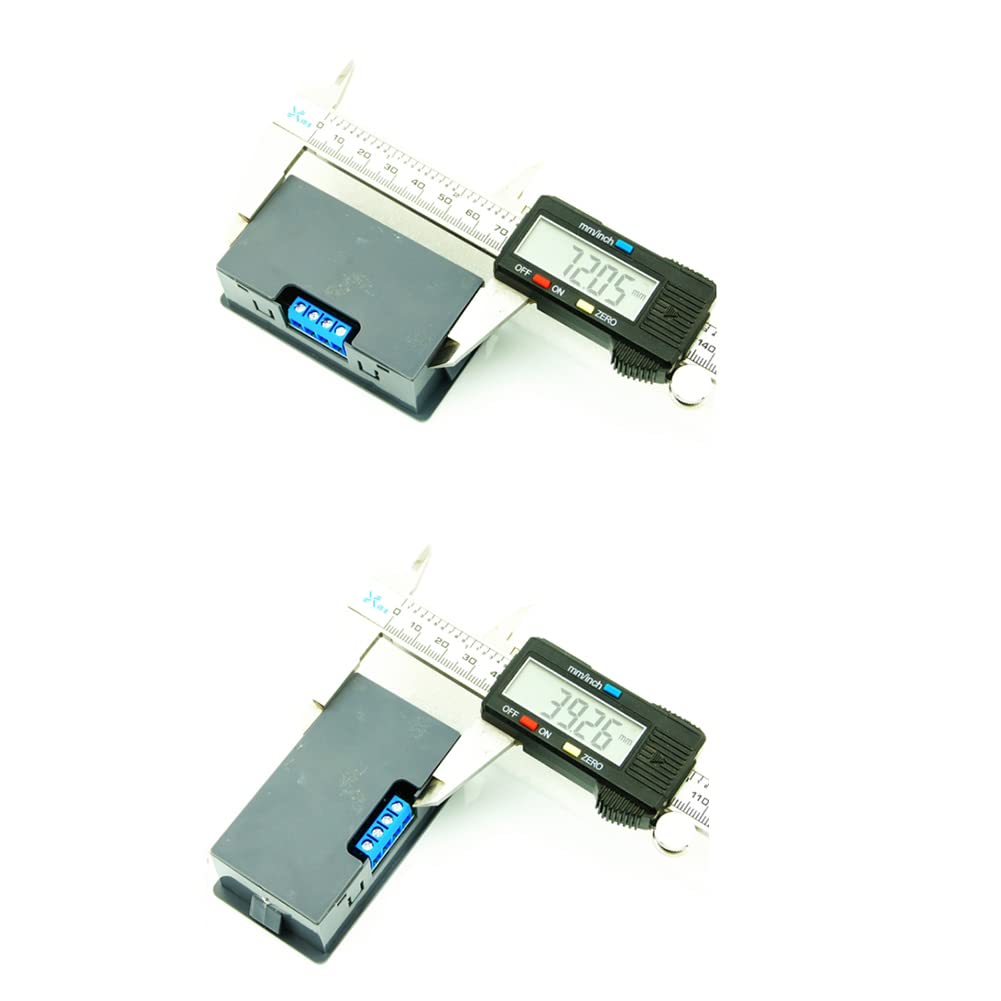

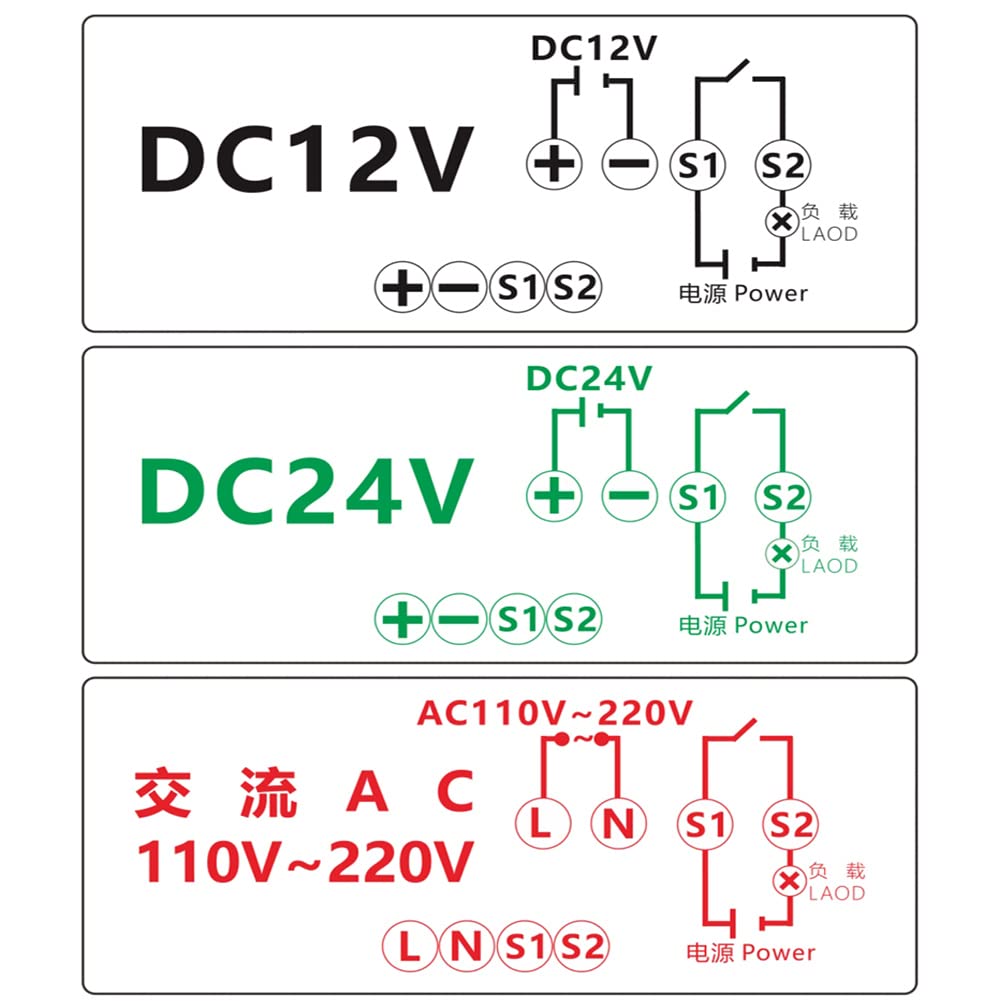

Parameter: Timing Range: 0-999s, 0-999min, 0-999h Relay type: Normally open relay Supply Voltage: DC12V 20A/240W(Max) DC24V 20A/480W(Max) AC110-220V 20A/1500W(Max) Size: 79*42*26mm, Hole size: 72*40mm Product Functions: Timing, Delaying, Time Cycling & etc. Features: P0--0: T1 timing for Seconds (0-999s). P0--1: T1 timing for Minutes (0-999m). P0--2: T1 timing for Hours (0-999h). P1-0 Load is off until (T1 or PV) time counts down to 0 then the load will come on and stay on. P1-1 The load comes on as the power button is pressed. After PV Time the load will go off. P1-2 The load is off for (T1 or PV)(delay time) then the load switches on and runs for the time set in (T2 or SV) then switches off until power switch is pressed to cycle again. P1-3 Load is on until PV Time runs out Then after SV time runs out the load will come on and stay on. P1-4 Load is off until (T1 or PV)(Delay) time counts down to 0, then load comes on until SV time counts down to 0 then the load is off then it cycles again and again-auto cycle. P1-5 The load is on until (T1 or PV) time counts down to 0 then powers down and after (T2 or SV)Time counts down to 0 the load will start working and cycle again and again-auto cycle. Note: Please pay attention for your first use. You need wait 6s after your setting data, the module will save you have set after 6s. Package Includes:2 X Timer Delay Relay AC110-220V 20A
Support multiple types of working mode including timing, cycle and cycle working modes meeting your most demands. Please pay attention for your first use. You need wait 6s after your setting data, the module will save you have set after 6s.
Time ranging from 1 second to 999 hours. Double LED displays, so you can set two timing time T1 and T2. Six operating modes for your choice.

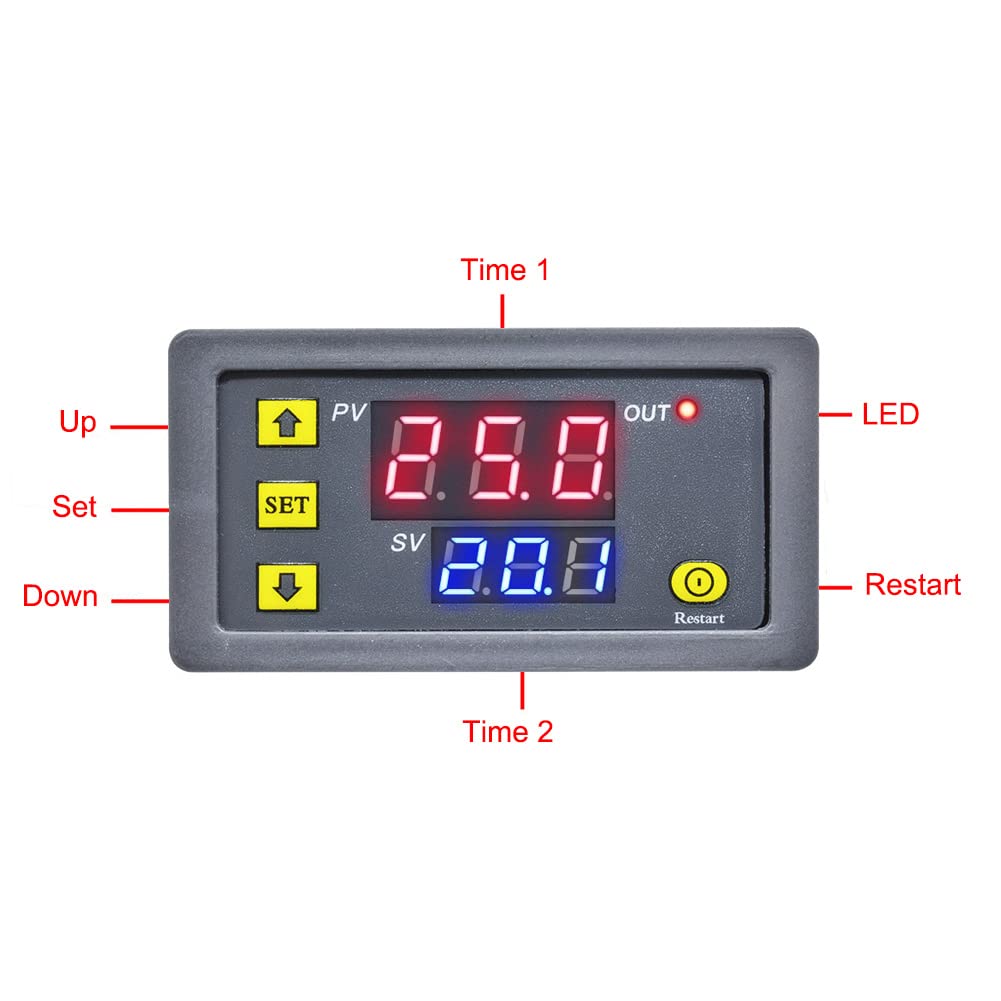

Dual LED Display On-board dual green-red LED display module and tactile push-button, which is easy to set the delay time and working modes(Red readout for practical value(PV); green readout for set value(SV).

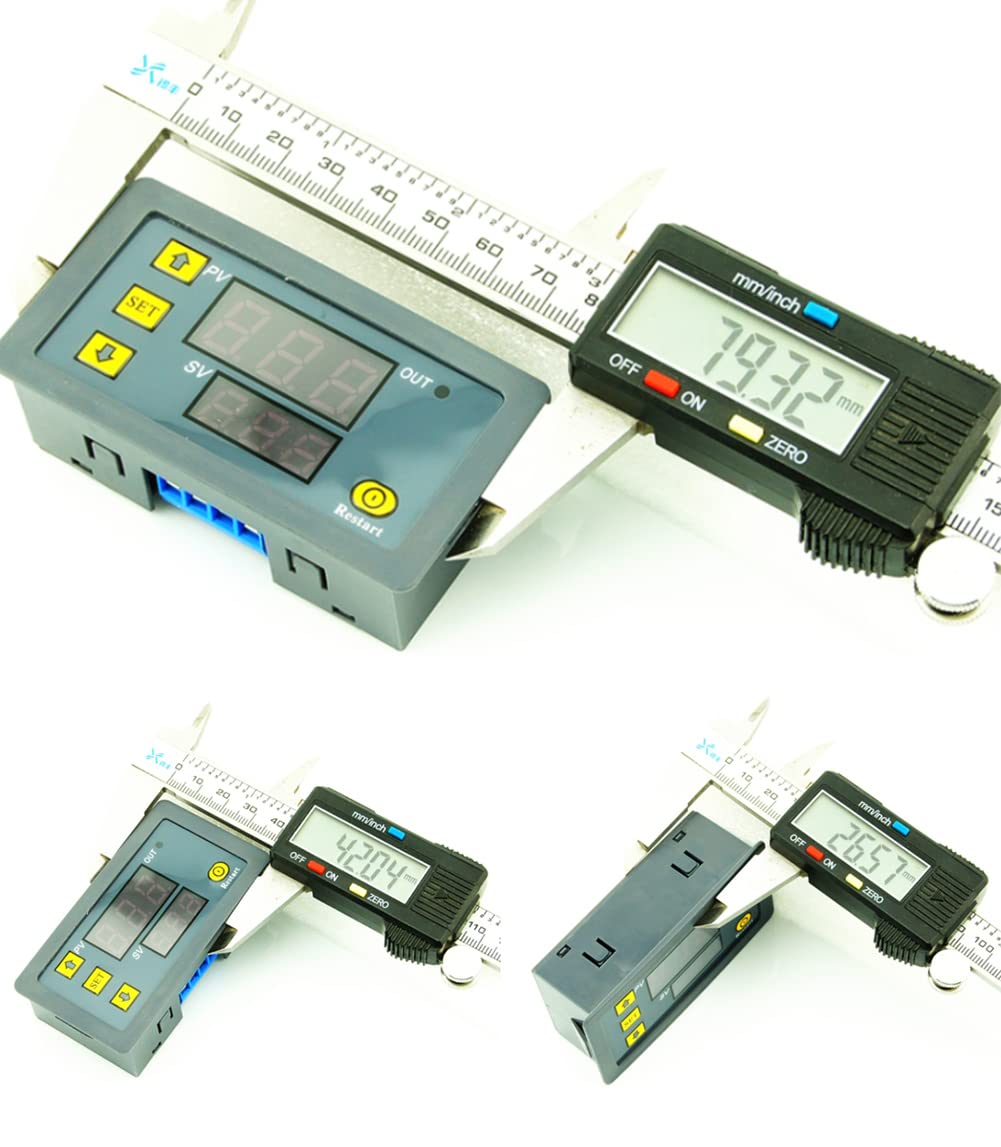

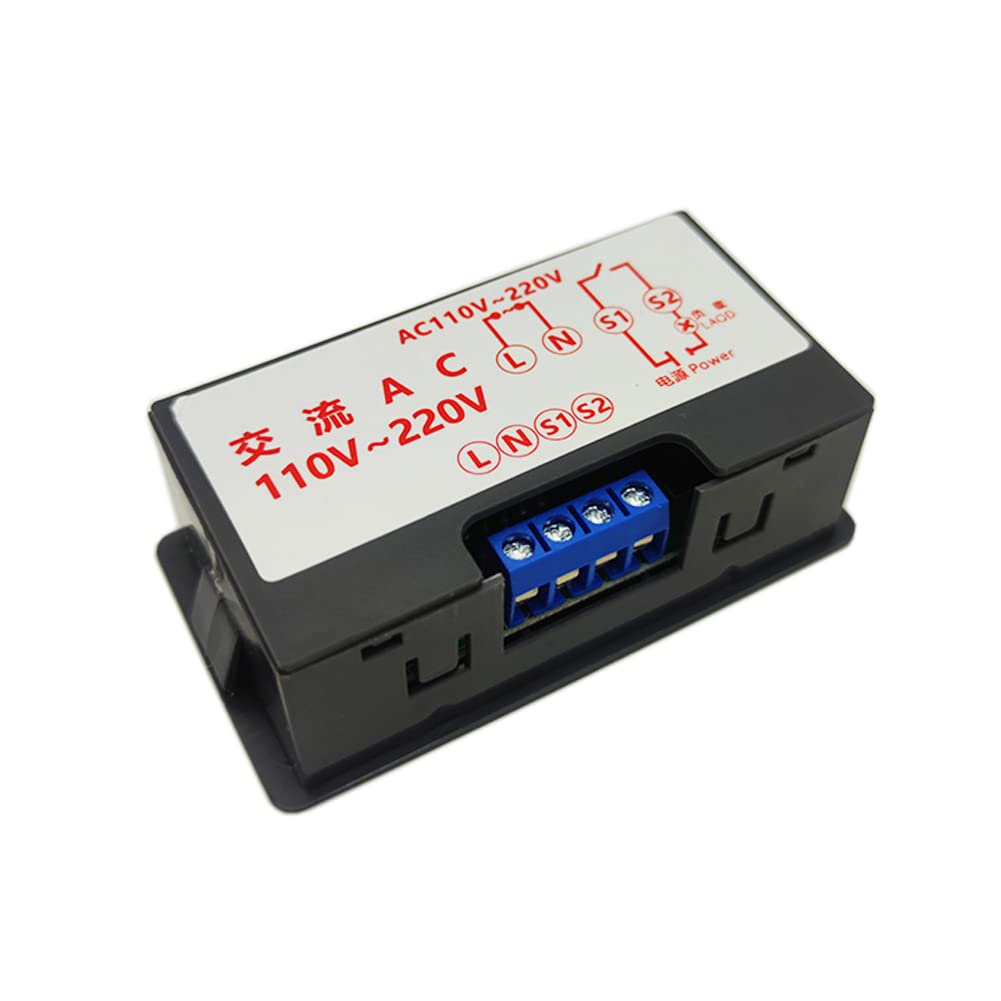

Supply VoltageAC110-220V 20A/1500W(Max). Size 79 X 42 X 26mm. (New and Old Models are Sent Randomly)
Three timing time for choice P0--0 T1 timing for Seconds (0-999s); P0--1 T1 timing for Minutes (0-999m); P0--2 T1 timing for Hours (0-999h). You could set the timing mode as your requirement.
I used it to limit the charger time for our E bikes. so they're not to often charge the batteries to full, hope it helps to extend their lifetime. The included manual is useless, several Youtube videos are extremely helpful
